F1200AA06

Power Line Filter Modules Overview

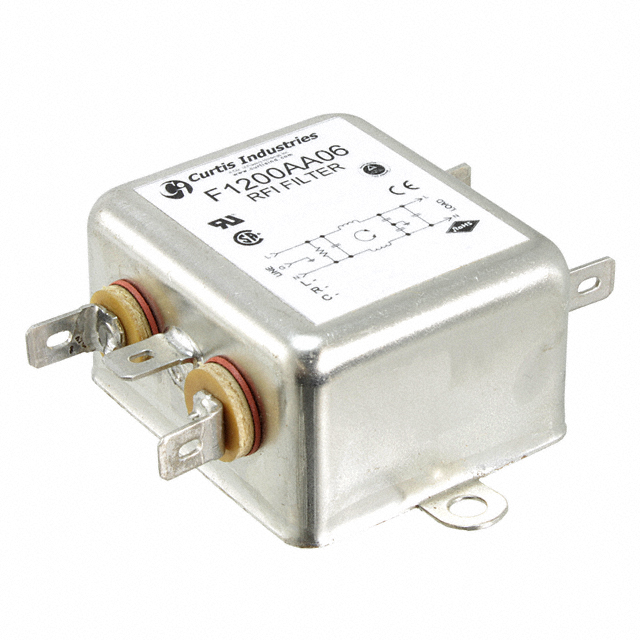

The Curtis Industries F1200AA06 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features a single-stage filtering configuration with quick connect terminals. The component is rated for 6 amperes of current and operates at voltages up to 250VAC. It supports standard 50Hz and 60Hz frequencies, providing noise suppression for power lines in industrial applications.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic compatibility and electromagnetic interference suppression
• Chassis mount mechanical design for secure installation
• Quick connect terminal interface for simplified wiring

Power Line Filter Modules Applications

• Industrial equipment power line noise filtering
• Commercial machinery EMI suppression
• Electrical control panel integration

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation against official Curtis Industries documentation to confirm exact electrical characteristics and mounting specifications. Ensure the procurement channel provides valid manufacturer authorization to guarantee component authenticity and compliance with stated ratings.

Power Line Filter Modules Selection Notes

Select this model when single-stage RFI/EMI filtration is required for single-phase AC power lines. Confirm that the operational voltage does not exceed 250VAC and the load current remains within the 6A limit. Verify chassis mounting requirements align with the physical dimensions provided in the official datasheet.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1200 series of power line filter modules. The series utilizes a four-element part numbering system to denote specific mechanical and electrical requirements. This particular model represents a standard configuration within their industrial noise filtration product line.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalent models. Cross-reference technical parameters such as current rating, voltage tolerance, and mounting style before considering alternative components.
