F1250AA20

Power Line Filter Modules Overview

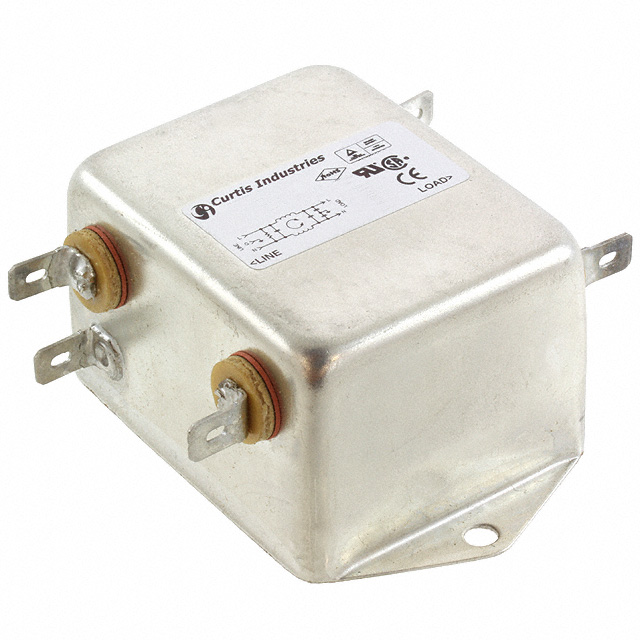

The Curtis Industries F1250AA20 is a single-phase EMI power line filter module designed for chassis mounting. It operates at a voltage rating of 250VAC and supports a current capacity of 20A. This component functions as an RFI power line block intended to suppress electromagnetic interference in AC power circuits.

Power Line Filter Modules Feature Summary

• Single-phase EMI filtering capability
• Chassis mount construction

Power Line Filter Modules Applications

• Industrial equipment requiring electromagnetic compatibility
• Commercial machinery needing RFI suppression
• Power entry modules for AC systems

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Curtis Industries documentation to confirm exact ratings and terminal configurations. Ensure the selected variant matches the required chassis mounting style and electrical specifications for your application before purchase.

Power Line Filter Modules Selection Notes

Select this model when a 20A single-phase filter is required for chassis installation. Confirm that the 250VAC rating aligns with the system voltage. Verify physical dimensions and terminal types against the mechanical drawings in the official datasheet to ensure compatibility with the enclosure design.

Power Line Filter Modules Part Context

This component belongs to the Curtis F1200/F1250 series of general-purpose single-phase filters. The series provides standardized solutions for EMI suppression in various industrial and commercial applications, offering consistent performance characteristics across different current ratings within the family.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Do not assume cross-compatibility with other manufacturers' models without verifying electrical parameters and mechanical fit.
