F1300AA20

Power Line Filter Modules Overview

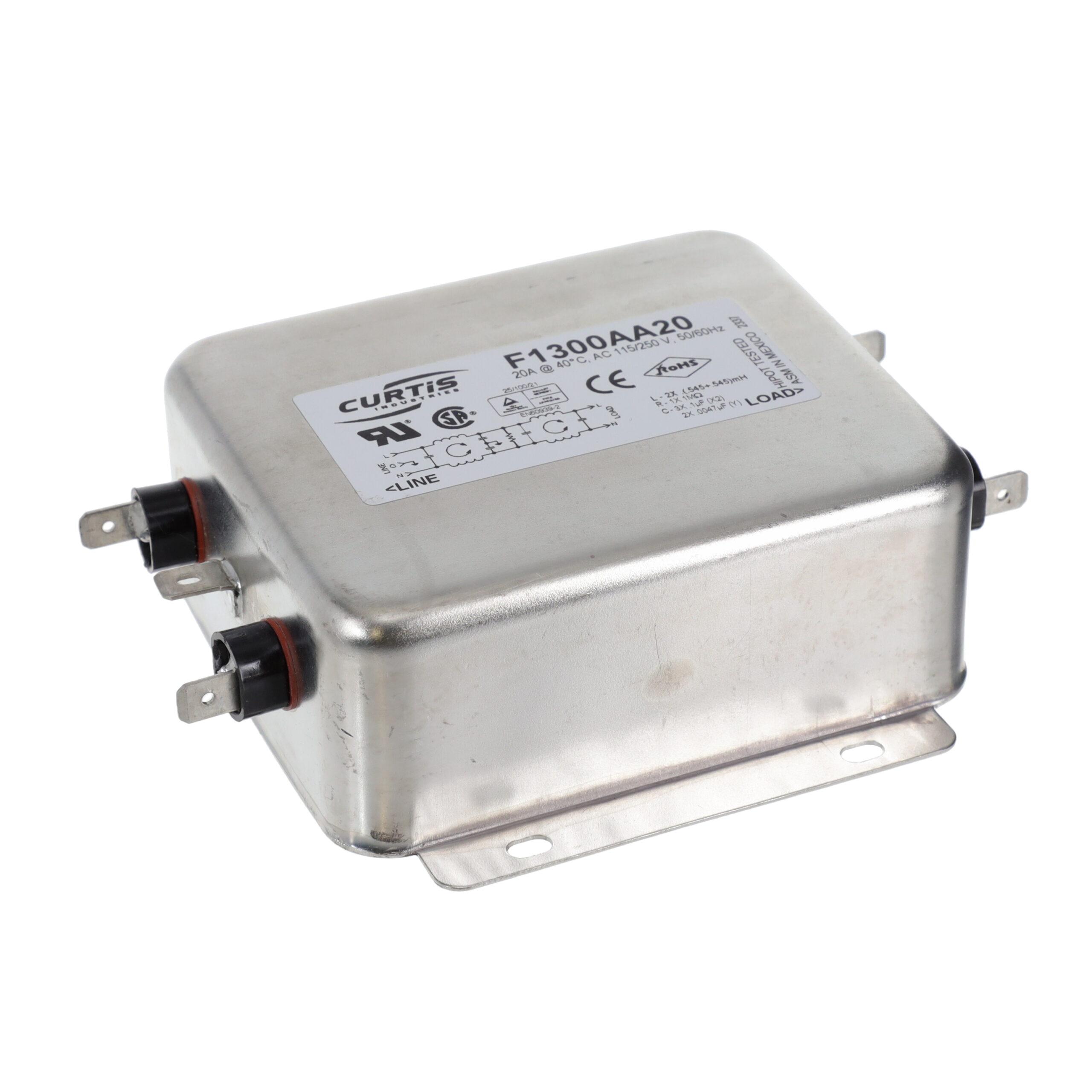

The F1300AA20 is a single-phase EMC/EMI line filter module manufactured by Curtis Industries. It features a two-stage filtering design intended for chassis mounting applications. The component is rated for a continuous current of 20 A and operates at a voltage of 250 VAC within standard 50/60 Hz power systems. Electrical connections are facilitated through quick-connect terminals, allowing for straightforward integration into power distribution circuits requiring noise suppression.

Power Line Filter Modules Feature Summary

• Two-stage EMI/EMC filtering architecture
• Quick-connect terminal interface
• Chassis mount configuration

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Commercial machinery noise suppression
• Electrical panel integration

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Curtis Industries documentation to confirm the two-stage filter specification and quick-connect terminal type. Ensure compatibility with 250VAC 20A operational requirements before procurement. Cross-reference datasheets to validate chassis mounting dimensions and electrical ratings.

Power Line Filter Modules Selection Notes

Select this component when dual-stage attenuation is required for single-phase AC lines. Confirm that the quick-connect termination style aligns with existing harness or PCB layouts. Verify that the chassis mounting form factor fits the available enclosure space and thermal management constraints of the target application.

Power Line Filter Modules Part Context

This model belongs to the Curtis Industries power line filter module series. These components are designed to mitigate electromagnetic interference in AC power circuits. The manufacturer specializes in industrial-grade electrical components, including terminal blocks and converters, ensuring reliability for commercial and industrial environments.
