F1399AA10

Power Line Filter Modules Overview

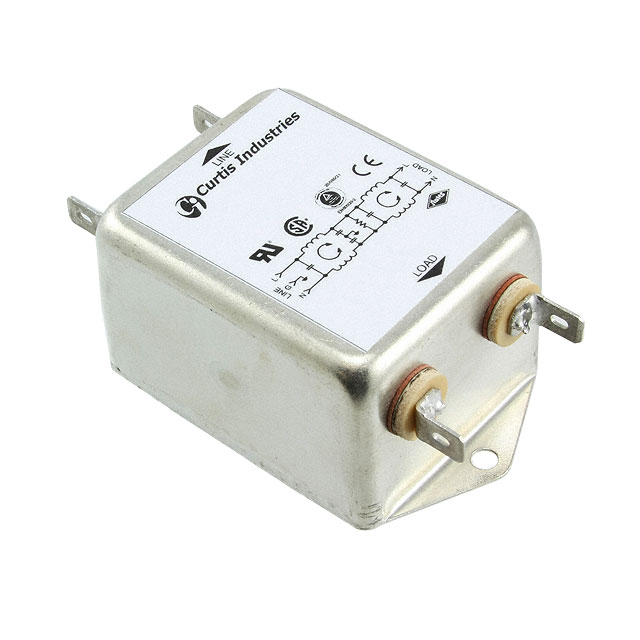

The Curtis Industries F1399AA10 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features a two-stage filtering configuration to suppress electromagnetic and radio frequency interference in AC power circuits. The component is rated for a continuous current of 10A at 40°C and operates with an AC voltage rating of 250VAC at 50/60Hz. It utilizes quick-connect terminals with 0.250-inch (6.3mm) blade contacts for circuit integration. The unit includes leakage current specifications ranging from 0.25 to 0.45 mA.

Power Line Filter Modules Feature Summary

• Two-stage EMI/RFI filtering architecture for enhanced noise suppression
• Quick-connect terminal interface for simplified wiring
• Chassis mount design for secure mechanical installation
• Compliance with international safety certification standards

Power Line Filter Modules Applications

• Industrial control panels requiring power line noise reduction
• Medical equipment power input stages
• Commercial electronic systems needing EMI compliance
• Test and measurement instrument power supplies

Power Line Filter Modules Procurement Notes

Verify the specific suffix code against official datasheets to confirm current ratings and terminal configurations, as variations exist within the F1399 series. Ensure compatibility with panel cutout dimensions and mounting hardware requirements before procurement. Confirm that the quick-connect terminal spacing matches existing PCB or wire harness layouts to prevent installation errors.

Power Line Filter Modules Selection Notes

Select this model when a 10A capacity is required for single-phase AC applications. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the operating temperature range accommodates the ambient environment. Ensure the leakage current limits meet specific safety isolation requirements for the target application.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1399 series of power line filters. The series provides various current ratings and filtering stages for different power requirements. The F1399AA10 specifically addresses high-current single-phase needs with robust EMI suppression capabilities suitable for demanding commercial and industrial environments.

Power Line Filter Modules Replacement Considerations

The TE Connectivity Corcom 6609031-3 is documented as a similar replacement part. Verify electrical parameters, physical dimensions, and terminal types before substitution to ensure functional equivalence and proper fit within the existing assembly.
