F1700AA10

Power Line Filter Modules Overview

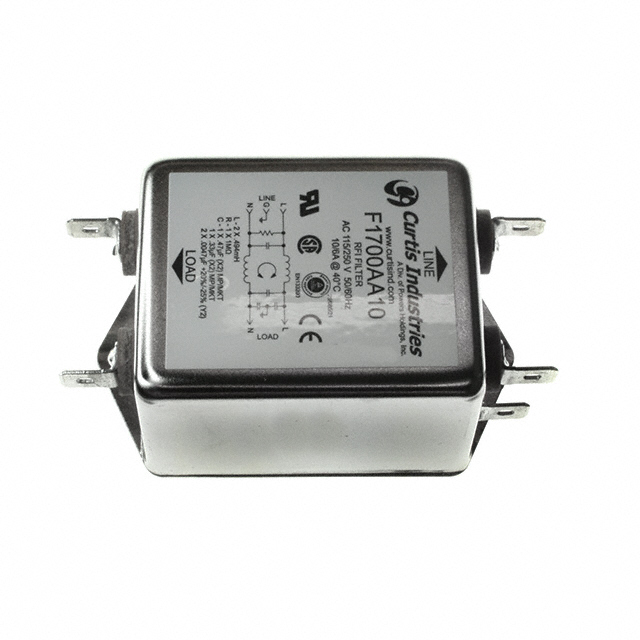

The Curtis Industries F1700AA10 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features quick connect terminations for both line and load sides, supporting an output current of 10 Amps at 250 VAC. The unit operates at 50/60Hz with a leakage current ranging from 0.40 to 0.75 mA.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for effective noise suppression
• Quick connect termination style for simplified wiring
• Chassis mount design for secure installation

Power Line Filter Modules Applications

• Radio Frequency Interference (RFI) elimination in power lines
• EMC compliance for electronic equipment
• Industrial control systems requiring filtered power input

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the F1700 series to confirm exact leakage current limits and insertion loss characteristics. Ensure the application voltage does not exceed the 250VAC rating. Confirm that quick-connect terminals match the mating connector specifications on the target PCB or wire harness.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, high-current (10A) EMI filter is required for chassis-mounted applications. The quick-connect interface suits designs prioritizing assembly speed over screw-terminal robustness. Verify space constraints accommodate the physical dimensions of the F1700AA10 module.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F1700 series of power line filters. These modules are engineered for general-purpose EMI/RFI suppression in AC power circuits. The series offers various current ratings and termination options to suit different industrial and commercial power distribution needs.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified cross-references within the F1700 or 1799 series. Ensure any substitute maintains identical current, voltage, and termination specifications.
