Product Detailed Parameters
- Description：MODULE SCR/DIODE 25A 380VAC
- Series：F18
- Mfr：Sensata-Crydom
- Package：Bulk
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1 kV
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：400A @ 60Hz
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：3 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

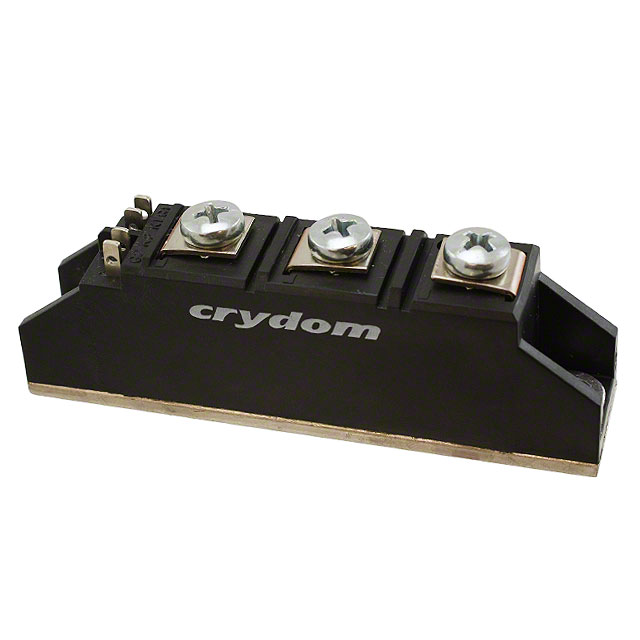

The F1827SD1000 is a silicon SCR-Diode power module from the Crydom F18 series, manufactured by Sensata Technologies. It features a double series semiconductor structure housed in an industry-standard F18 package. The device supports a load current of 25A and withstands a maximum off-state voltage of 1kV (1000V DC). It utilizes screw termination for electrical connections and exhibits a forward voltage drop of 1.55V. This component provides high isolation voltage and serves as a robust building block for industrial power control applications.
Feature Summary
- Double series SCR-Diode configuration for enhanced power handling
- Industry-standard F18 package design for versatile integration
- Screw terminal interface ensuring secure mechanical and electrical connection
Applications
- Industrial power control systems
- High-voltage AC switching circuits
- Power conversion modules requiring isolated SCR-Diode pairs
Procurement Notes
Verify the specific manufacturer part number against official Sensata or Crydom documentation to confirm availability and authenticity. Check for any recent product lifecycle changes or obsolescence notices directly from the manufacturer. Ensure that the procurement channel provides valid traceability and compliance certificates such as RoHS status. Cross-reference technical specifications with the latest datasheet to match application requirements precisely before ordering.
Selection Notes
Select this module when a compact, high-isolation SCR-Diode solution is required for industrial environments. The F18 package allows for easy mounting and heat dissipation compared to smaller discrete components. Consider the 25A current rating and 1kV blocking voltage to ensure compatibility with system voltage levels. Verify that the screw termination method aligns with the existing PCB or busbar infrastructure in the target design.
Part Context
This component belongs to the Crydom F18 series of power modules, which are designed for single-use or modular power control applications. The series offers various current and voltage ratings within a standardized form factor. Sensata Technologies acquired the Crydom brand, integrating these modules into their broader portfolio of discrete semiconductor solutions for global industrial markets.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source data. Users should consult official Sensata replacement guides or contact technical support for direct equivalents.
