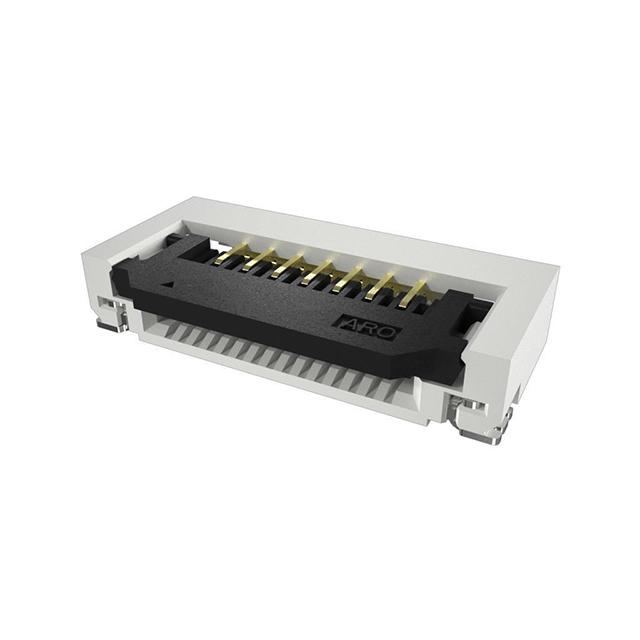

F51L-1A7H1-11005

F51L-1A7H1-11005 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is F51L-1A7H1-11005-FLIP TYPE. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for F51L-1A7H1-11005

• Description：F51L-1A7H1-11005-FLIP TYPE
• Series：Aorora F51L
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：5
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.100" (2.54mm)
• Locking Feature：Flip Lock
• Cable End Type：Tabbed
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Polyamide (PA9T), Nylon 9T
• Features：Solder Retention
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for F51L-1A7H1-11005
