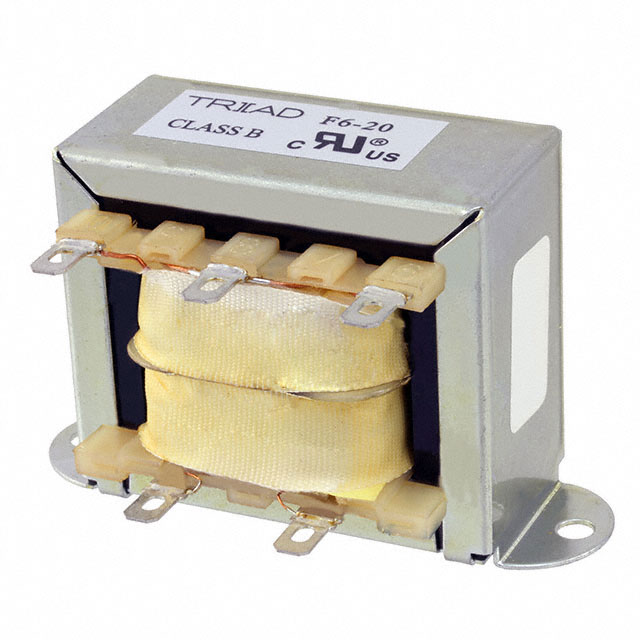

F6-20

$12.45

Description：PWR XFMR LAMINATED 30VA CHAS MT
Series：Quick Pack
Mfr：Triad Magnetics
Package：Box

SKU:aab693ae1ca0 Category: Power Transformers Brand: Triad Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F6-20 is listed in the Power Transformers range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is PWR XFMR LAMINATED 30VA CHAS MT. Review the specifications below when checking this part for your BOM.

Power Transformers specifications for F6-20

Description：PWR XFMR LAMINATED 30VA CHAS MT
Series：Quick Pack
Mfr：Triad Magnetics
Package：Box
Type：Laminated Core
Voltage - Primary：115V
Voltage - Secondary (Full Load)：20V
Current - Output (Max)：1.5A
Primary Winding(s)：Single
Secondary Winding(s)：Single
Center Tap：Yes
Power - Max：30VA
Mounting Type：Chassis Mount
Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension：82.55mm L x 42.85mm W
Height - Seated (Max)：49.20mm
Voltage - Isolation：2500VAC
Weight：1.1 lbs (499 g)

Power Transformers datasheet and documents for F6-20

F6-20

Power Transformers Overview

The Triad Magnetics F6-20 is a laminated core power transformer rated at 30VA, designed for chassis mounting. It features a single primary winding supporting 115V input and a secondary configuration providing a 20V center-tapped output with a maximum current of 1.5A. The unit utilizes a quick pack construction with integrated lugs for secure installation. Key electrical specifications include a 115V primary voltage and a 20Vct secondary voltage. The component is RoHS compliant and classified under ECCN EAR99.

Power Transformers Feature Summary

Quick Pack construction reduces size and weight relative to VA rating
Integrated mounting lugs facilitate chassis installation
Laminated core design supports standard power transformation

Power Transformers Applications

Chassis-mounted power supply units
Industrial equipment requiring isolated power conversion
Audio amplifier power stages

Power Transformers Procurement Notes

Verify the specific secondary voltage configuration (center-tapped vs. split) against the application schematic before ordering. Confirm that the physical dimensions and lug placement are compatible with the target chassis enclosure. Ensure the 30VA rating meets the peak load requirements of the downstream circuitry to prevent thermal overload during operation.

Power Transformers Selection Notes

Select this model when a compact, high-power density solution is required for chassis mounting applications. The F6 series offers a balance of performance and reduced footprint compared to traditional laminated transformers. Consider the 1.5A current capacity and 20Vct output to ensure alignment with the load's voltage and current demands without exceeding the transformer's thermal limits.

Power Transformers Part Context

The F6-20 belongs to Triad Magnetics' Quick Pack small power transformer series. This line is engineered to provide significant reductions in size and weight for a given VA rating compared to conventional designs. The series is widely utilized in industrial and commercial applications where space constraints and efficient heat dissipation are critical factors in system design.
