FAMDB3600ZF000

Power Line Filter Modules Overview

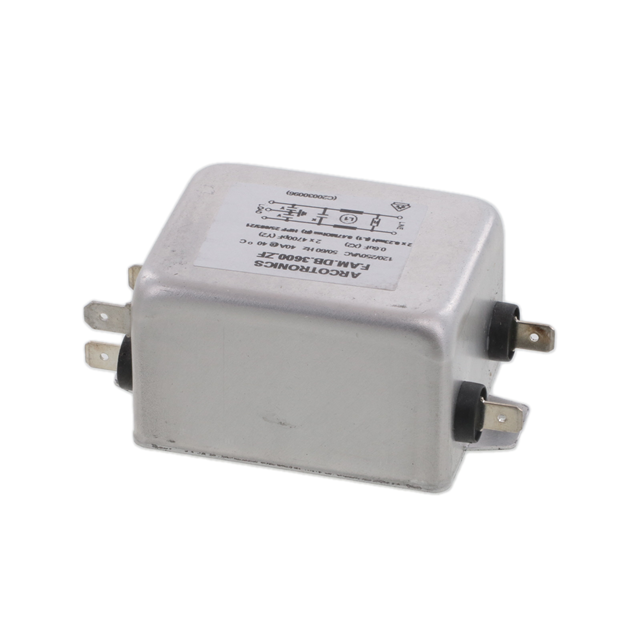

The KEMET FAMDB3600ZF000 is a single-phase EMC/EMI power line filter designed for chassis mounting. It operates at a voltage of 250V AC and supports a continuous current of 40A at 50/60Hz. The unit features a single-stage configuration with an inductance of 0.23mH. Capacitance values include 600nF for X-mode (Cx) and 4.7nF for Y-mode (Cy). Termination is achieved via quick connect terminals, facilitating integration into industrial power systems.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic interference suppression
• Chassis mount mechanical design
• Quick connect terminal termination

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• AC power distribution units
• Electrical control panels

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision to confirm exact pinout dimensions and torque specifications for the quick connect terminals. Ensure the installation environment meets the thermal requirements for 40A continuous operation. Confirm that the chassis mounting holes align with the mechanical drawings provided by KEMET for the FAMDB series.

Power Line Filter Modules Selection Notes

Select this component when a robust single-stage solution is required for high-current applications up to 40A. The 250V AC rating suits standard industrial mains voltages. Consider the physical size constraints of the chassis mount design against available panel space. Verify compatibility with existing wiring harnesses utilizing quick connect interfaces.

Power Line Filter Modules Part Context

This part belongs to the KEMET FAMDB series of power line filters. These components are engineered for general-purpose EMI suppression in single-phase AC circuits. The series offers various current ratings and inductance values to match different load profiles while maintaining compliance with international EMC standards.

Power Line Filter Modules Replacement Considerations

Consult official KEMET documentation for direct cross-references. Verify that any substitute maintains the 40A current rating, 250V AC voltage rating, and compatible chassis mounting footprint.
