FD00DD100

Power Line Filter Modules Overview

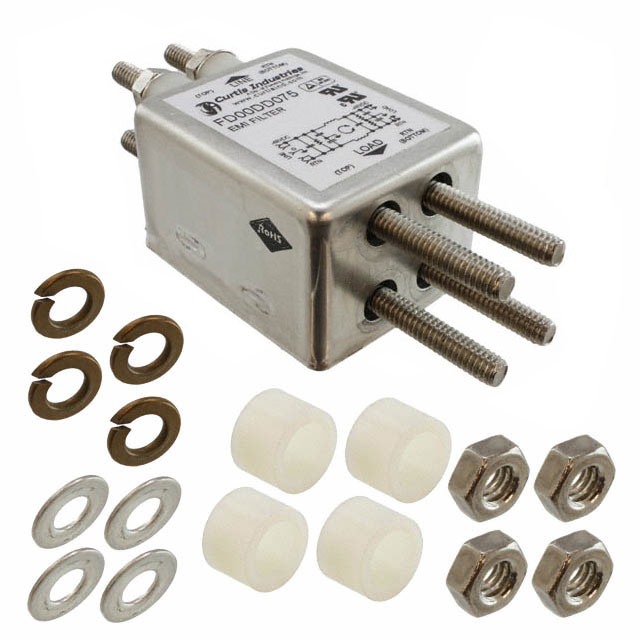

The Curtis Industries FD00DD100 is a power line filter module designed for chassis mounting. It supports a maximum voltage of 80VDC and handles a current capacity of 100A. The unit provides significant overload capability, sustaining six times the rated current for eight seconds. Insulation resistance is specified at 1000MΩ at 80VDC, with line-to-ground withstand voltage of 1060VDC and line-to-line withstand voltage of 100VDC. Operating temperature ranges from 0°C to 55°C.

Power Line Filter Modules Feature Summary

• Chassis mount design for secure installation
• High current handling with defined overload tolerance
• Robust insulation characteristics for safety

Power Line Filter Modules Applications

• DC power line filtering in industrial systems
• Chassis-mounted power supply protection
• Electrical equipment requiring high-current noise suppression

Power Line Filter Modules Procurement Notes

Verify the exact part number against manufacturer documentation to ensure compatibility with system voltage and current requirements. Confirm that the chassis mounting style aligns with available space and mechanical constraints. Check for RoHS compliance status if environmental regulations apply to your specific deployment environment.

Power Line Filter Modules Selection Notes

Select this component when a robust, high-current DC filter is required for chassis integration. Ensure the application voltage does not exceed 80VDC and that the operating environment stays within the 0°C to 55°C range. Consider the physical dimensions and mounting hardware requirements during the design phase to ensure proper fit.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries power line filter module series. These modules are engineered for durability and performance in demanding electrical environments. The FD00DD100 variant specifically targets high-current applications where reliable noise filtration and surge protection are critical for system stability.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any replacement matches the 80VDC rating, 100A current capacity, and chassis mounting form factor. Ensure insulation and thermal specifications meet or exceed original requirements.
