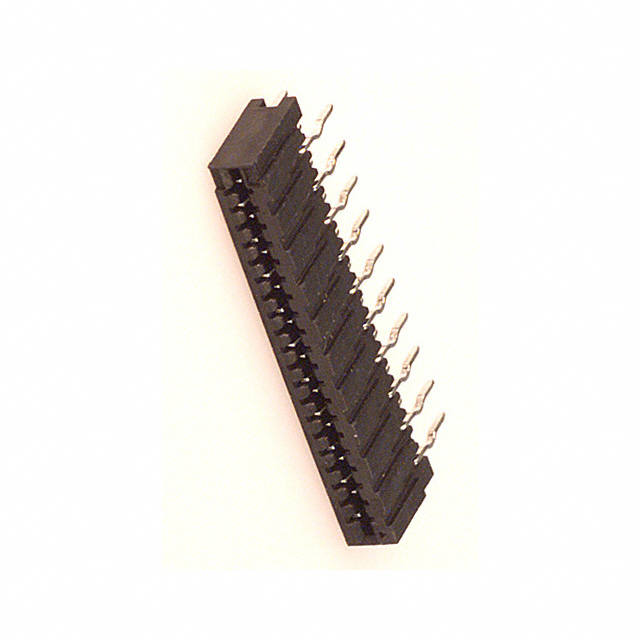

FH21-20S-1DSA

FH21-20S-1DSA is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FFC FPC VERT 20POS 1MM PCB. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH21-20S-1DSA

• Description：CONN FFC FPC VERT 20POS 1MM PCB
• Series：FH21
• Mfr：Hirose Electric Co Ltd
• Package：Bulk
• Flat Flex Type：FFC, FPC
• Mounting Type：Through Hole
• Connector/Contact Type：Contacts, Vertical - 2 Sided
• Number of Positions：20
• Pitch：0.039" (1.00mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.228" (5.80mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Solder Plating
• Housing Material：Polybutylene Terephthalate (PBT)
• Actuator Material：-
• Features：Low Insertion Force (LIF)
• Voltage Rating：50V
• Operating Temperature：-30°C ~ 70°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH21-20S-1DSA
