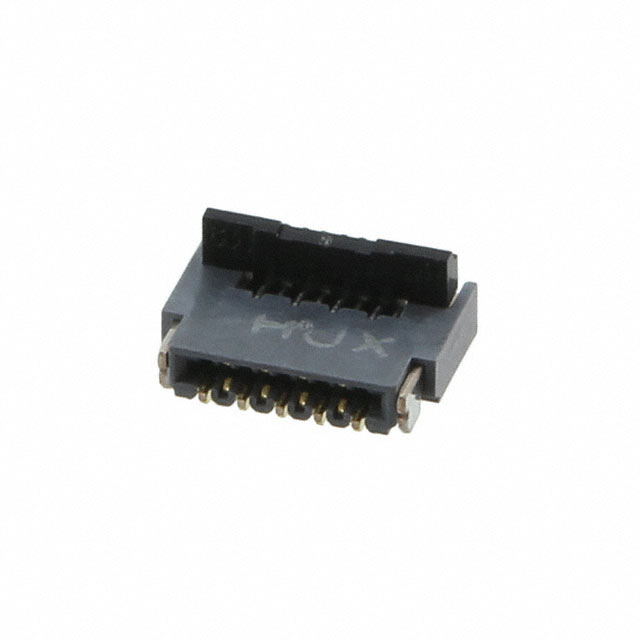

FH35C-9S-0.3SHW(99)

FH35C-9S-0.3SHW(99) is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FPC 9POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH35C-9S-0.3SHW(99)

• Description：CONN FPC 9POS 0.3MM R/A
• Series：FH35C
• Mfr：Hirose Electric Co Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：9
• Pitch：0.012" (0.30mm)
• Termination：Solder
• FFC, FCB Thickness：0.20mm
• Height Above Board：0.035" (0.88mm)
• Locking Feature：Flip Lock, Backlock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Polyamide (PA), Nylon
• Features：-
• Voltage Rating：30V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH35C-9S-0.3SHW(99)
