FIN3755.030.M

Power Line Filter Modules Overview

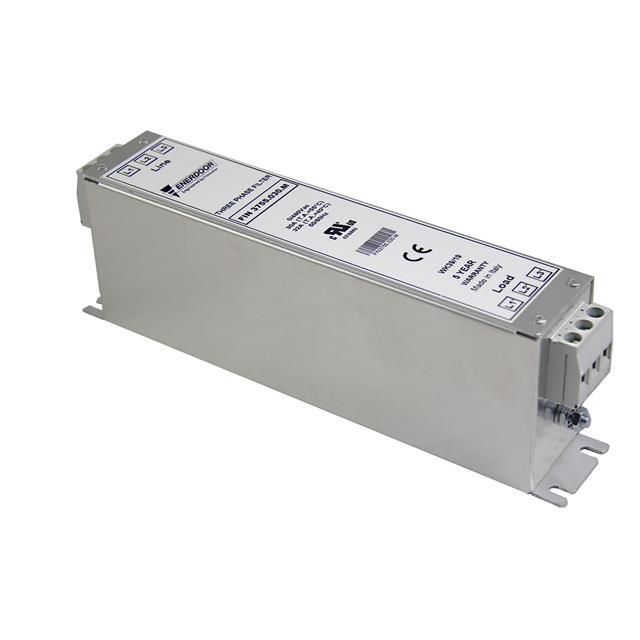

The Enerdoor FIN3755.030.M is a three-phase delta EMC/EMI line filter module designed for industrial power applications. It features a nominal voltage rating of 0 to 480 Vac and operates at frequencies of 50 to 60 Hz. The unit has a rated current capacity of 30 A, with the broader series supporting up to 280 A. Potential test voltage between phases is specified at 2200 Vdc for two seconds. Leakage current ranges from 10 to 80 mA. The device utilizes terminal block connections and holds certifications including CE, CSA, cURus, and UL.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase delta power systems
• Single-stage filtering architecture for efficient noise reduction
• Terminal block connection method for secure electrical integration

Power Line Filter Modules Applications

• Industrial power supply units requiring EMI mitigation
• Battery charging systems in automated environments
• Energy-efficient machinery installations

Power Line Filter Modules Procurement Notes

Verify that the specific model suffix matches the required current rating and phase configuration. Confirm that the terminal block interface aligns with existing panel wiring standards. Ensure compliance with local safety regulations regarding leakage current limits and potential test voltage requirements for the installation environment.

Power Line Filter Modules Selection Notes

Select this component when a three-phase delta topology is required for noise suppression. Consider the 30 A rated current against peak load demands. Evaluate the 2200 Vdc potential test voltage capability against system insulation requirements. Verify that the terminal block mounting style fits the available enclosure space and wiring constraints.

Power Line Filter Modules Part Context

This module belongs to the Enerdoor FIN3755 series of power line filter modules. The series offers various current ratings, ranging from 7 A to 280 A, to accommodate different industrial power levels. These filters are engineered to meet international EMC standards and provide reliable interference protection for sensitive electronic equipment in noisy electrical environments.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify compatibility with existing system parameters before considering alternative components.
