FL2D-D0-040

Common Mode Chokes Overview

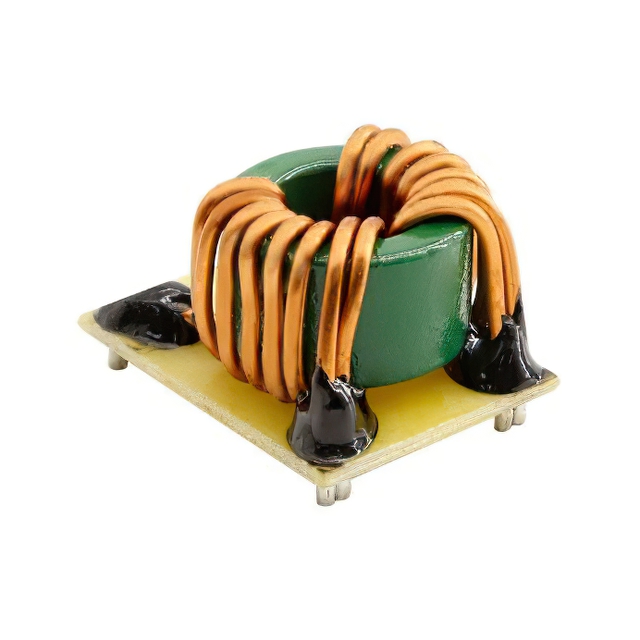

The Mornsun FL2D-D0-040 is a through-hole common mode choke designed for EMI suppression in power supply circuits. It utilizes a DIP-4 package with a lead spacing of 17x9.6mm. The component features a rated current of 0.4A and an inductance value of 22mH at 1kHz. It is constructed to meet UL508 isolation requirements and complies with RoHS standards, ensuring environmental safety.

Common Mode Chokes Feature Summary

• Provides effective electromagnetic interference suppression capabilities
• Ensures high reliability and stable performance across temperature variations
• Features a compact physical footprint suitable for space-constrained designs

Common Mode Chokes Applications

• Input filtering for AC/DC converters
• EMI suppression in DC power lines
• Common mode noise reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official Mornsun documentation to confirm exact electrical parameters and packaging specifications. Ensure compliance with local regulatory requirements such as RoHS and UL standards before integration into final products.

Common Mode Chokes Selection Notes

Select this component based on the required inductance and current ratings for the target application. Consider the physical dimensions and mounting style to ensure compatibility with the PCB layout and assembly process.

Common Mode Chokes Part Context

This part belongs to the FL2D series of common mode chokes from Mornsun. The series is characterized by its robust construction and suitability for general-purpose power supply applications requiring reliable EMI filtering.

Common Mode Chokes Replacement Considerations

Consult official cross-reference lists or datasheets for verified substitute part numbers. Ensure any replacement matches the original inductance, current rating, and physical dimensions.
