FL75L05 A

Power Line Filter Modules Overview

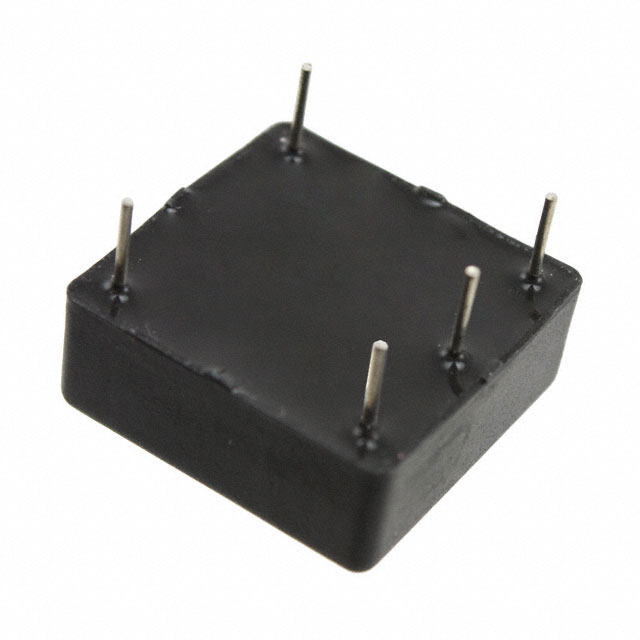

The Delta Electronics FL75L05A is a DC EMI/EMC line filter module from the Delphi series, designed for high-frequency switching power supplies. It features a maximum input voltage of 75 VDC and a current rating of 5 A. The component utilizes a two-stage filtering configuration to attenuate conducted common-mode and differential-mode noise on power lines. It supports printed-circuit board mounting with an industry-standard footprint and pin-out, ensuring compatibility with existing designs.

Power Line Filter Modules Feature Summary

• Reduces conducted common-mode and differential-mode noise on input or output lines
• Optimized for use with high-frequency board-mounted DC/DC converters
• Printed-circuit board mountable with industry standard footprint

Power Line Filter Modules Applications

• Common-mode and differential-mode filtering of power supply dc input and output lines
• Computer applications
• Communications equipment

Power Line Filter Modules Procurement Notes

Verify the specific suffix and revision code against the manufacturer's official datasheet to ensure compatibility with your design requirements. Confirm that the component status is acceptable for new production, as availability may vary. Cross-reference the pin-out and mechanical dimensions with your PCB layout to guarantee proper fit and electrical connection before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this module when designing systems requiring robust EMI suppression for DC power lines up to 75 VDC. Ensure the application current does not exceed the 5 A rating. Consider the physical dimensions and mounting style if space constraints are critical. Verify that the two-stage filtering performance meets the specific EMC standards required by the target market and end-use equipment regulations.

Power Line Filter Modules Part Context

This component belongs to the Delphi series of filter modules manufactured by Delta Electronics. The series includes variants with different current ratings, such as the FL75L20A, which shares similar design principles but offers higher current capacity. These modules are engineered for reliability in stressful operating conditions and are produced in certified manufacturing facilities adhering to ISO and quality management standards.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the Delphi series, such as the FL75L20A, if higher current handling is needed. Verify that any replacement maintains the same 75 VDC maximum input voltage and two-stage configuration. Ensure mechanical compatibility regarding the industry-standard footprint and pin-out to avoid redesigning the host circuit board.
