FLLE21K0APVI1

Power Line Filter Modules Overview

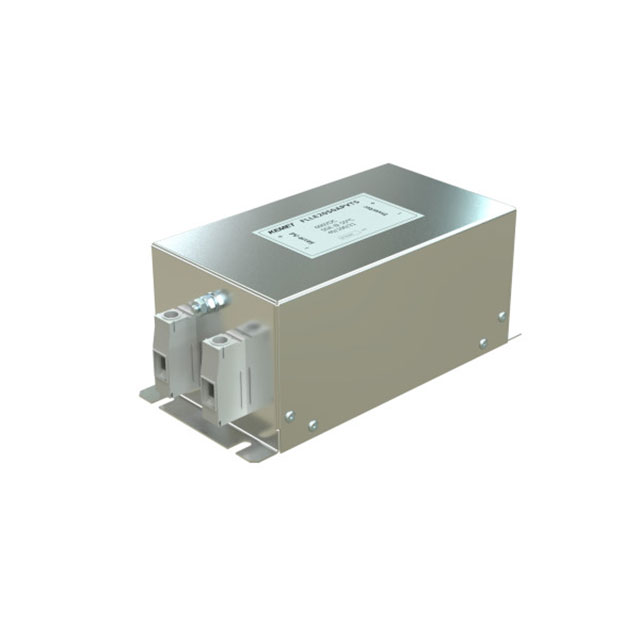

The KEMET FLLE21K0APVI1 is a single-phase EMC/EMI line filter module designed for chassis mounting. It features terminal post connections and supports a continuous current of 1 kA with a DC voltage rating of 1.2 kV (1200 V). The unit operates within a temperature range of -40°C to +100°C. This component functions as a single-stage filter intended for power line applications requiring robust electromagnetic interference suppression in industrial or high-power environments.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• High current handling capacity of 1 kA
• Chassis mount construction with terminal posts

Power Line Filter Modules Applications

• Industrial power supply input stages
• High-voltage DC equipment filtering
• Electromagnetic interference suppression in heavy machinery

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for detailed attenuation curves and connection diagrams. Confirm that the terminal post configuration matches your chassis interface requirements. Ensure the operating environment stays within the specified -40°C to +100°C range to maintain performance integrity and safety compliance.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for the required noise reduction. The 1 kA rating dictates suitability for high-power circuits. Consider thermal management strategies given the chassis mount design and operational temperature limits. Verify insulation and creepage distances against application safety standards.

Power Line Filter Modules Part Context

This component belongs to KEMET's power line filter modules series, which provides passive filtering solutions for AC and DC lines. These modules are engineered to meet stringent EMC standards, offering compact integration for systems where discrete components would consume excessive board space or require complex assembly.

Power Line Filter Modules Replacement Considerations

Consult official KEMET documentation for direct cross-references. Evaluate alternative single-phase filters with comparable 1 kA ratings and 1200 VDC capabilities if exact substitution is unavailable.
