FMAC-0931-1610

Power Line Filter Modules Overview

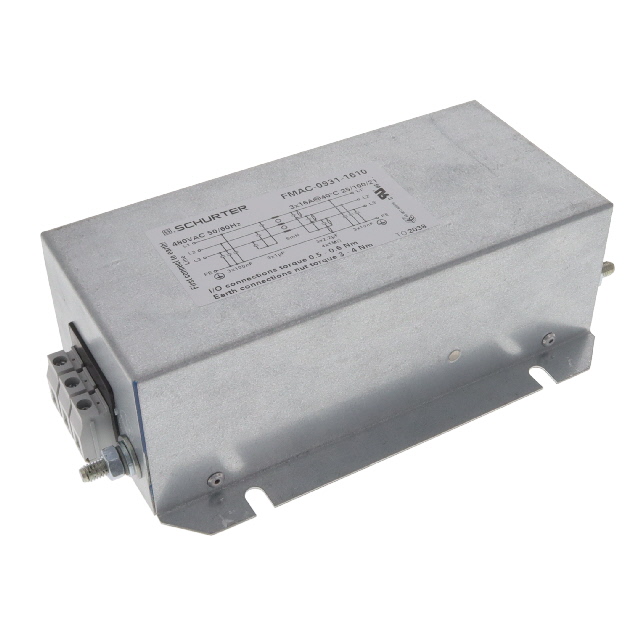

The FMAC-0931-1610 is a three-phase EMC/EMI line filter manufactured by SCHURTER Inc. It supports AC voltages of 480V and 520V at frequencies of 50Hz and 60Hz with a rated current of 16A. The unit features a single-stage configuration utilizing terminal block connections for secure mounting. Designed for chassis installation, it operates within a temperature range of -25°C to 100°C. This component provides essential noise suppression for industrial power systems requiring robust electromagnetic compatibility.

Power Line Filter Modules Feature Summary

• Provides single-stage EMI/EMC filtering for three-phase power lines
• Utilizes terminal block termination for reliable electrical connection
• Engineered for direct chassis mounting in industrial enclosures

Power Line Filter Modules Applications

• Industrial machinery power input stages
• Three-phase motor drive systems
• Commercial building infrastructure power distribution

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirement against the datasheet, as sources indicate both 480V and 520V ratings for this part number. Confirm that the terminal block interface matches your wiring harness specifications. Ensure the chassis mounting dimensions align with your enclosure design before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for your noise attenuation requirements. The 16A current rating suits moderate-load applications. Verify that the terminal block style meets your assembly needs compared to screw or PCB options available in other series variants.

Power Line Filter Modules Part Context

This component belongs to the FMAC series of power line filters from SCHURTER. The series offers various configurations for three-phase systems, ranging from compact eco-friendly designs to high-current industrial units. The FMAD-0931-1610 designation appears in some documentation, indicating potential naming variations or specific sub-series distinctions within the manufacturer's portfolio.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's official cross-reference guide for verified alternatives.
