FMAC-0954-H110

Power Line Filter Modules Overview

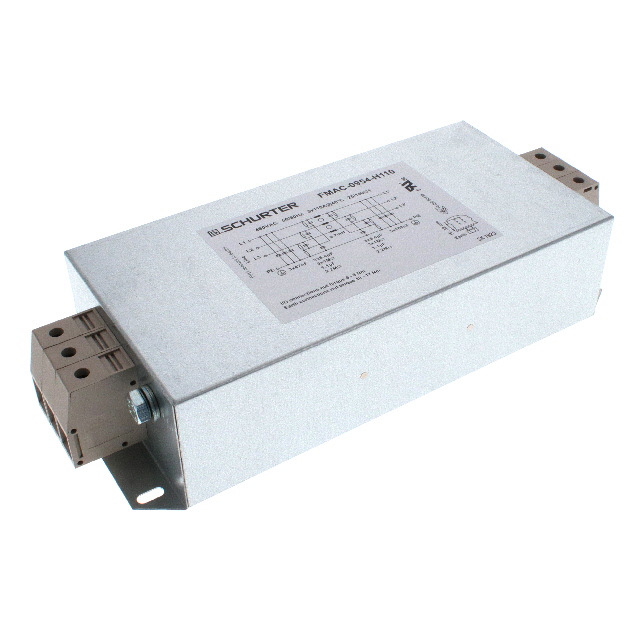

The FMAC-0954-H110 is a three-phase EMC/EMI line filter from the Schurter FMAC series. It supports rated currents of 110A at 277V and 480VAC, with voltage ratings up to 520VAC. Designed for 50/60Hz operation, it features a single-stage architecture. The unit utilizes terminal block connections and chassis mounting. Key electrical parameters include a leakage current within standard limits for industrial safety. It is engineered for robust performance in demanding power conditioning environments.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for effective EMI suppression
• Terminal block interface for secure electrical connections
• Chassis mount design for stable mechanical installation

Power Line Filter Modules Applications

• General-purpose industrial machinery power conditioning
• Three-phase delta system noise reduction
• EMC compliance enhancement for sensitive equipment

Power Line Filter Modules Procurement Notes

Verify the specific application voltage (277V vs 480V) against the datasheet to ensure correct current rating selection. Confirm that the terminal block connection type matches your wiring infrastructure. Ensure the chassis mounting dimensions fit the available enclosure space. Validate that the leakage current specifications comply with local safety standards for the intended installation environment.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels. Consider the 110A rating relative to the operating voltage to avoid derating issues. Evaluate the physical size constraints due to the chassis mount form factor. Compare against higher-capacity models if future load expansion is anticipated.

Power Line Filter Modules Part Context

This component belongs to the FMAC series of power line filters by Schurter. The series is characterized by high-current capabilities and modular designs suitable for industrial applications. The FMAC-0954-H110 specifically addresses three-phase requirements with a focus on compact integration and reliable noise filtration for heavy-duty equipment.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other FMAC series variants with similar current ratings. Verify compatibility with existing mounting hardware and terminal configurations. Ensure replacement units meet the same IEC/EN and UL certification standards.
