FMAC-0957-H550

Power Line Filter Modules Overview

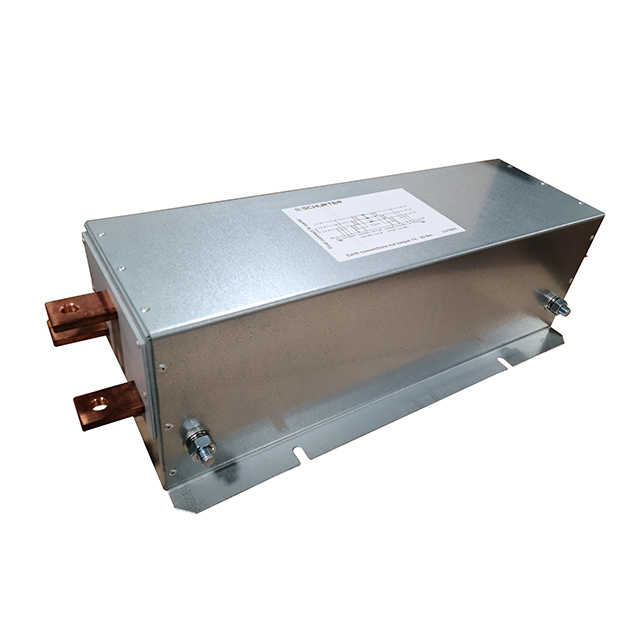

The FMAC-0957-H550 is a three-phase single-stage power line filter manufactured by Schurter. It supports rated AC voltages of 480 VAC and 520 VAC with a current rating of 450 A. Designed for 50/60 Hz operation, it features chassis mounting and screw termination. The unit operates within a temperature range of -25°C to 100°C and complies with UL, VDE, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase delta configurations
• Engineered for high-current industrial applications up to 450 A
• Constructed for robust chassis mounting environments

Power Line Filter Modules Applications

• Industrial power distribution systems
• Three-phase motor drive installations
• Heavy machinery power conditioning

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480V or 520V) required for your application against the datasheet specifications. Confirm that the chassis mounting style and screw termination type are compatible with your enclosure design. Ensure the operating temperature range meets your environmental conditions. Cross-reference the compliance certifications (UL, VDE, IEC/EN) with local regulatory requirements before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a high-capacity single-stage filter is needed for three-phase delta networks. It is suitable for applications requiring significant current handling without complex multi-stage filtering. Consider the physical dimensions and weight for chassis integration. Verify that the leakage current characteristics align with safety grounding requirements in the target system architecture.

Power Line Filter Modules Part Context

This model belongs to the FMAC series of power line filters from Schurter. The series is designed for industrial EMC/EMI suppression. The FMAC-0957-H550 represents a high-current variant within this lineup, distinguished by its 450 A rating and specific voltage compatibility for standard industrial power grids.

Power Line Filter Modules Replacement Considerations

Check for other models in the FMAC series with similar current ratings but different voltage profiles. Verify mechanical compatibility if substituting with other chassis-mount filters. Ensure electrical parameters match exactly to maintain system safety and performance.
