FMAC-0A38-3213

Power Line Filter Modules Overview

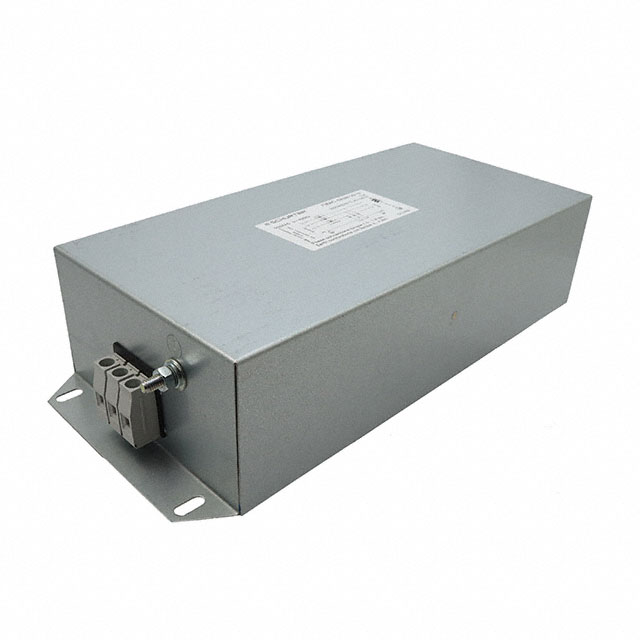

The Schurter FMAC-0A38-3213 is a three-phase single-stage output filter designed for frequency inverter applications. It supports a rated AC voltage of 550V and operates at frequencies of 50Hz or 60Hz with a current rating of 32A. Key electrical parameters include an inductance of 200µH and a leakage current within standard limits. The unit utilizes terminal block connections and is constructed for industrial environments, ensuring power quality compliance.

Power Line Filter Modules Feature Summary

• Designed specifically as an output filter for three-phase frequency inverters to ensure optimal power quality.
• Provides single-stage filtering to mitigate electromagnetic interference in industrial drive systems.
• Utilizes terminal block connections for secure integration into power distribution networks.

Power Line Filter Modules Applications

• Three-phase frequency inverter output stages
• Industrial motor drive systems requiring power quality optimization
• Commercial equipment sensitive to electromagnetic interference

Power Line Filter Modules Procurement Notes

Verify the specific application requirements against the 550V AC rating and 32A current capacity before procurement. Confirm that the terminal block interface matches the existing wiring infrastructure. Ensure the component meets the necessary IEC/EN standards for the target installation region. Cross-reference the datasheet for thermal management requirements under full load conditions.

Power Line Filter Modules Selection Notes

Select this model when a dedicated output filter for three-phase inverters is required rather than an input EMI filter. Compare the 200µH inductance value against system impedance requirements to ensure effective harmonic attenuation. Consider the physical dimensions and mounting constraints relative to the inverter enclosure. Evaluate the leakage current specifications to ensure compatibility with ground fault protection devices.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMAC series, which specializes in high-performance power line filters. The FMAC series is engineered for robust industrial applications, offering solutions for both input and output filtering needs. This specific part addresses the unique challenges of inverter-driven systems by managing high-frequency noise generated during switching operations.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. When replacing this unit, ensure the new component matches the 32A current rating, 550V AC voltage, and 200µH inductance values. Verify that the terminal block connection type is compatible with the existing wiring setup to maintain system integrity.
