FMAD-0937-8010

Power Line Filter Modules Overview

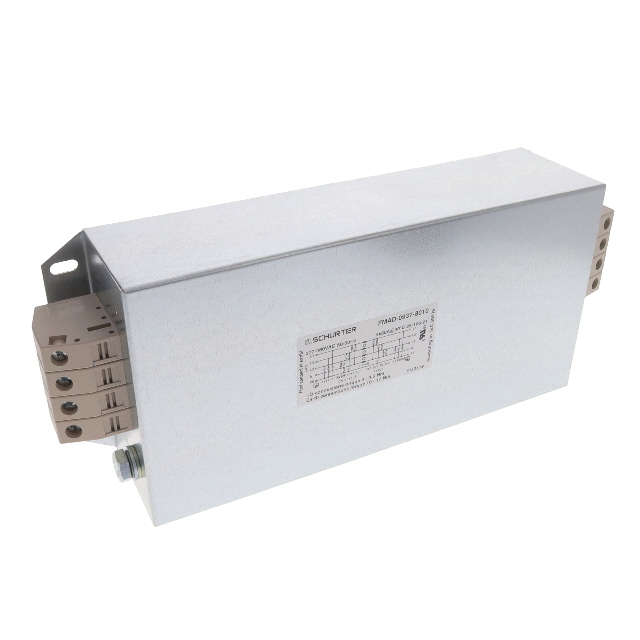

The FMAD-0937-8010 is a three-phase single-stage EMC/EMI power line filter manufactured by Schurter. It supports a maximum AC voltage rating of 277V and 480V with an operating frequency of 50Hz or 60Hz. The unit is rated for a continuous current of 80A and utilizes terminal block connections. Designed for chassis mounting, it features a leakage current of up to 5mA.

Power Line Filter Modules Feature Summary

• Provides single-stage electromagnetic interference suppression for three-phase systems
• Engineered for robust chassis mounting applications
• Utilizes screw terminal connections for secure electrical interfacing

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive input filtering
• General purpose power line noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the FMAD-0937-8010 to confirm exact dimensional tolerances and derating curves. Ensure that the installation environment meets the thermal requirements associated with the 80A current rating. Confirm compliance certifications required for the target market before finalizing procurement specifications.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for EMI attenuation in three-phase circuits. The 80A rating dictates suitability for high-power industrial loads. Verify that the 277V/480V voltage ratings align with the system supply. Consider the chassis mount style if panel integration is preferred over DIN rail installation.

Power Line Filter Modules Part Context

This model belongs to the FMAD series of power line filters from Schurter. The series focuses on providing reliable noise suppression for industrial power distribution networks. The part number structure indicates specific current and voltage configurations within the broader product family designed for general-purpose applications.

Power Line Filter Modules Replacement Considerations

Cross-reference with other Schurter FMAD variants for different current ratings. Verify mechanical footprint compatibility if substituting with similar third-party industrial filters. Ensure equivalent leakage current limits are maintained for safety compliance.
