FMAD-09KQ-H650

$836.06

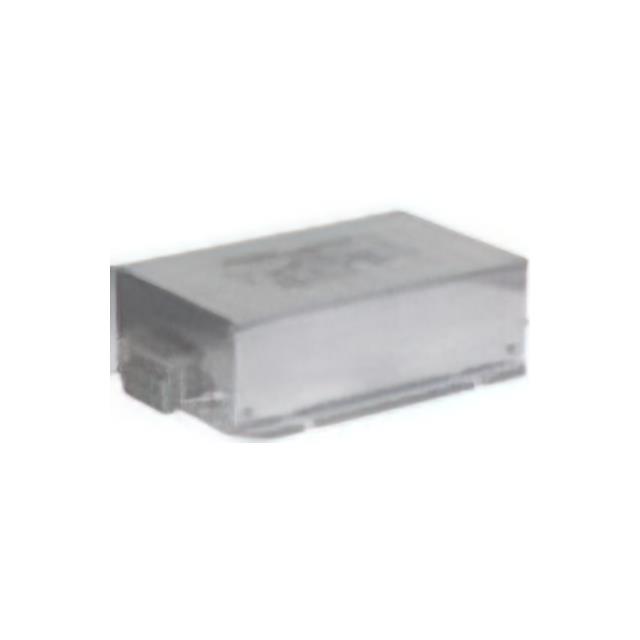

Description：LINE FILTER 550A CHASSIS MOUNT
Series：FMAD
Mfr：SCHURTER Inc.
Package：Box

SKU:260d947bafd5 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMAD-09KQ-H650 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 550A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMAD-09KQ-H650

Description：LINE FILTER 550A CHASSIS MOUNT
Series：FMAD
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：550 A
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：cURus
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block, Threaded Post (M6)
Inductance：200µH
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Power Line Filter Modules datasheet and documents for FMAD-09KQ-H650

FMAD-09KQ-H650

Power Line Filter Modules Overview

The Schurter FMAD-09KQ-H650 is a single-stage power line interference suppression filter designed for three-phase plus neutral configurations. It supports a nominal current of 550 A at voltages up to 480 VAC and operates within the 50 to 60 Hz frequency range. The unit features an inductance of 200 µH and utilizes screw connections for secure terminal attachment.

Power Line Filter Modules Feature Summary

Provides electromagnetic interference suppression for three-phase electrical systems
Engineered for high-current industrial applications requiring robust filtering
Constructed with screw terminals to ensure reliable mechanical and electrical connectivity

Power Line Filter Modules Applications

Industrial power distribution networks
Three-phase motor drive systems
Heavy-duty manufacturing equipment

Power Line Filter Modules Procurement Notes

Verify that the required nominal current does not exceed 550 A and the system voltage remains within the 480 VAC limit. Confirm compatibility with the 200 µH inductance specification for your specific EMI mitigation requirements. Ensure the installation environment accommodates the physical dimensions and thermal characteristics of the filter module.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for three-phase noise reduction. The 550 A rating makes it suitable for high-power loads where standard filters are inadequate. Verify that the screw connection type aligns with the available busbar or cable termination methods in the target assembly design.

Power Line Filter Modules Part Context

This model belongs to the FMAD series of power line filters manufactured by Schurter. These components are engineered to meet stringent electromagnetic compatibility standards for industrial environments. The series offers various current ratings and connection types to accommodate diverse power infrastructure needs.
