FMAM4029

RF Amplifiers Overview

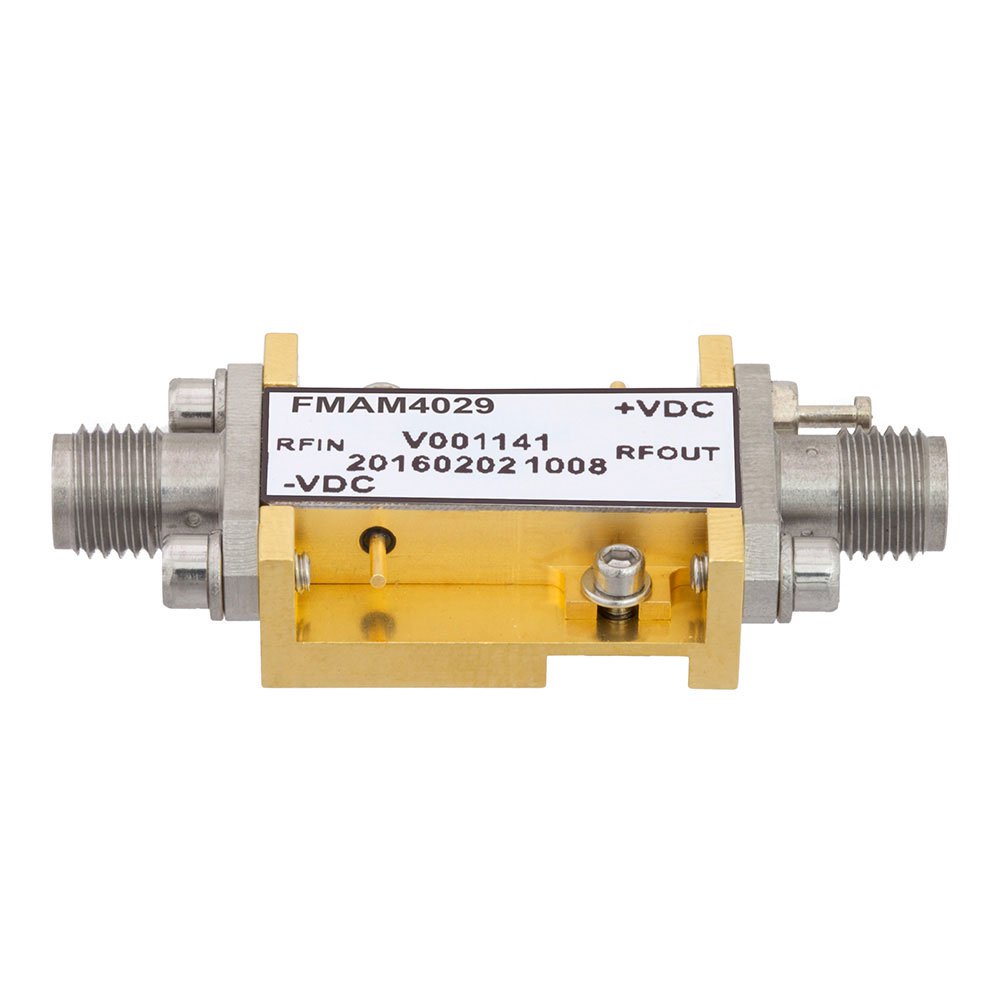

The FMAM4029 is a medium power broadband RF amplifier manufactured by Fairview Microwave. It operates across a frequency range of 10 MHz to 20 GHz. The device provides a gain of 13 dB and supports an output power level of 25 dBm. It utilizes SMA connectors for interfacing and requires an operating supply current of 225 mA.

RF Amplifiers Feature Summary

• Broadband operation spanning from 10 MHz to 20 GHz
• Medium power capability with 25 dBm output
• Integrated SMA connector interface

RF Amplifiers Applications

• Wideband signal amplification in test and measurement equipment
• Broadband communication systems requiring high-frequency coverage
• Research and development environments utilizing spectrum analysis

RF Amplifiers Procurement Notes

Verify the specific datasheet version and connector gender compatibility before integration. Confirm that the required 225 mA supply current is available within your system design constraints. Ensure the SMA interface matches your existing cabling infrastructure to maintain signal integrity at frequencies up to 20 GHz.

RF Amplifiers Selection Notes

Select this component when a single-stage solution is needed for ultra-wideband applications covering microwave frequencies. The 13 dB gain and 25 dBm power handling make it suitable for driving subsequent stages in complex RF chains. Consider thermal management requirements given the continuous wave power capabilities.

RF Amplifiers Part Context

This amplifier belongs to Fairview Microwave's portfolio of active RF components designed for broad frequency coverage. It complements their passive cable assemblies and connectors by providing necessary signal conditioning. The product line targets engineers needing reliable performance across diverse wireless standards and testing scenarios.

RF Amplifiers Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate alternative broadband amplifiers from other manufacturers only if they match the 10 MHz to 20 GHz range, 13 dB gain, and SMA interface specifications exactly.
