FMAM4053F

RF Amplifiers Overview

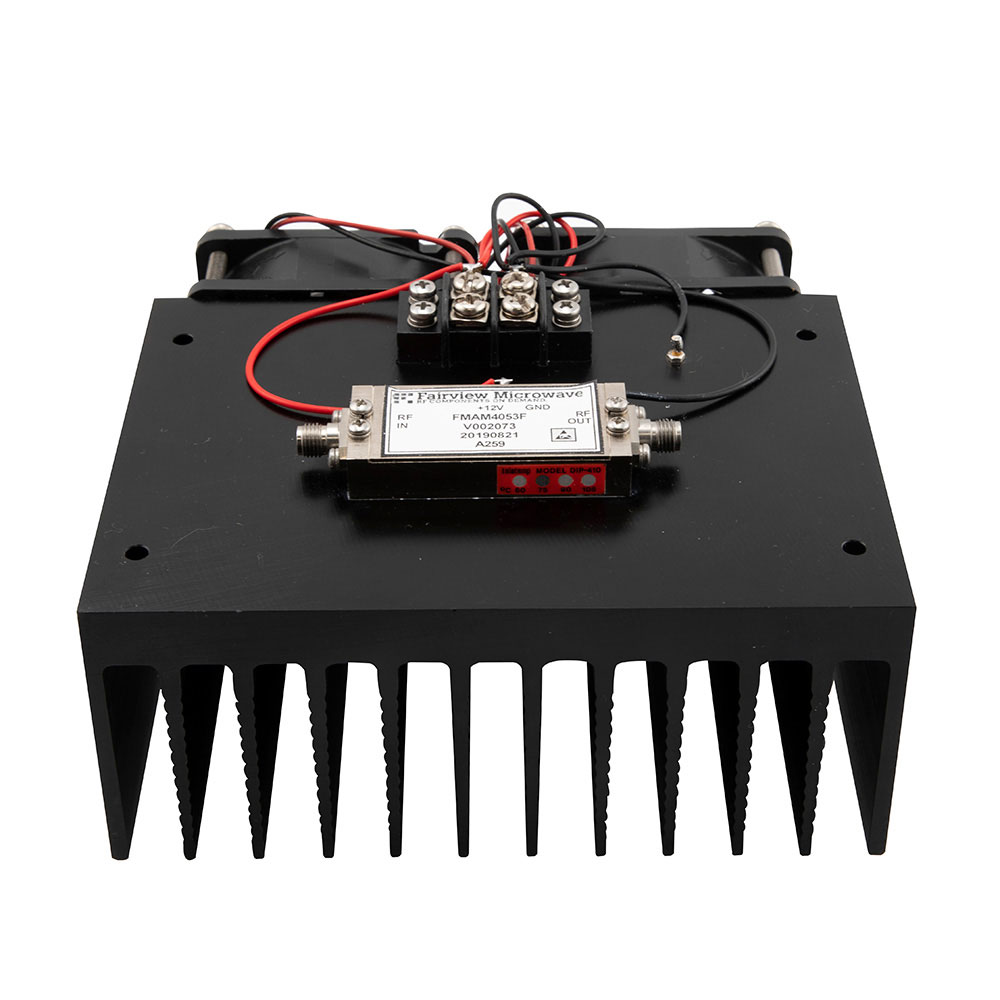

The FMAM4053F is a medium power RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 4 GHz and features SMA connectors. The device delivers a P1dB output power of 1 Watt and requires a working supply current of 1.5 A. Designed for robust performance, it includes an integrated heatsink to manage thermal loads during operation. The unit is packaged in a bag and weighs approximately 1.361 kg.

RF Amplifiers Feature Summary

• Integrated heatsink design for thermal management
• SMA connector interface
• Medium power amplification capability

RF Amplifiers Applications

• RF signal amplification in wireless systems
• Test and measurement equipment
• Communication infrastructure components

RF Amplifiers Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm datasheet alignment with specific operational requirements. Check for regional sales restrictions as availability may vary by location. Ensure proper handling procedures are followed due to the component's weight and sensitive RF nature.

RF Amplifiers Selection Notes

Select this model when a 1 Watt P1dB output is required across the 500 MHz to 4 GHz spectrum. The built-in heatsink makes it suitable for applications where passive cooling is preferred over active fan systems. Verify that the 1.5 A supply current matches available power resources in the target system design.

RF Amplifiers Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically designed for medium power applications. It complements other broadband amplifiers in the manufacturer's lineup, offering a balance between power output and frequency coverage for professional RF engineering tasks.

RF Amplifiers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Fairview Microwave technical support for direct equivalents if this specific model is unavailable.
