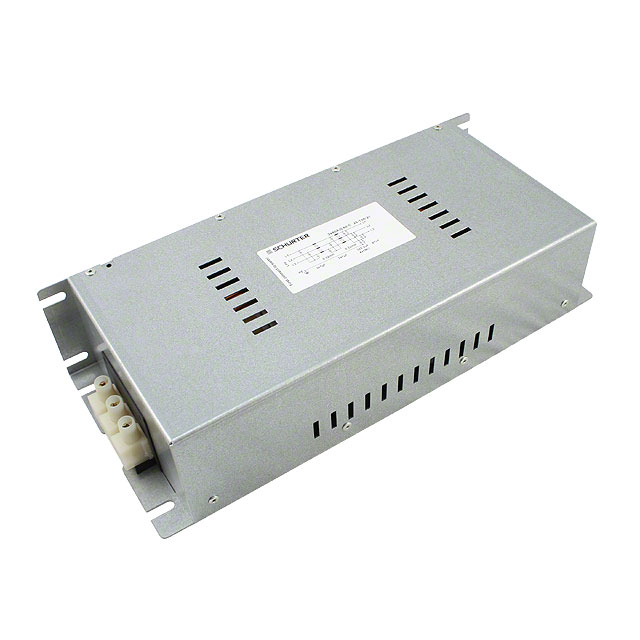

FMBC-0996-8000

Power Line Filter Modules Overview

The FMBC-0996-8000 is a three-phase, two-stage power line filter from the Schurter FMBC NEO series. It supports a maximum current of 80 A and operates at voltages up to 480 V AC at 50/60 Hz. Designed for chassis mounting with terminal block connections, it provides robust EMI/EMI suppression. The unit features low leakage current and high thermal stability, ensuring reliable performance in demanding industrial environments while maintaining compliance with international safety standards.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with terminal block connections for secure installation
• Optimized for three-phase power systems with high current capacity

Power Line Filter Modules Applications

• Industrial motor drives and variable frequency drives
• Power conditioning equipment
• Heavy machinery control panels

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480V AC) and current capacity (80A) against your system requirements before ordering. Confirm that the chassis mounting style and terminal block interface are compatible with your enclosure design. Ensure that the environmental operating temperature range meets your application's thermal conditions. Check for any specific certification requirements such as UL or CE depending on your region.

Power Line Filter Modules Selection Notes

Select this model when high current handling and superior noise attenuation are required for three-phase applications. The two-stage design offers better performance than single-stage filters for sensitive electronic loads. Consider the physical dimensions and weight for panel space planning. Evaluate the leakage current specifications if connected to residual current devices.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, which focuses on eco-friendly and high-performance power line filters. The series is known for its compact design and efficient filtering capabilities. It complements other Schurter EMC solutions by providing specialized modules for industrial power distribution networks.

Power Line Filter Modules Replacement Considerations

Direct replacements may include other models within the FMBC NEO series with similar current ratings, such as FMBC-0996-6600 for lower current needs. Verify compatibility with existing mounting hardware and electrical connections. Cross-reference datasheets for exact dimensional and electrical parameter matches.
