FMBC-345A-2512

Power Line Filter Modules Overview

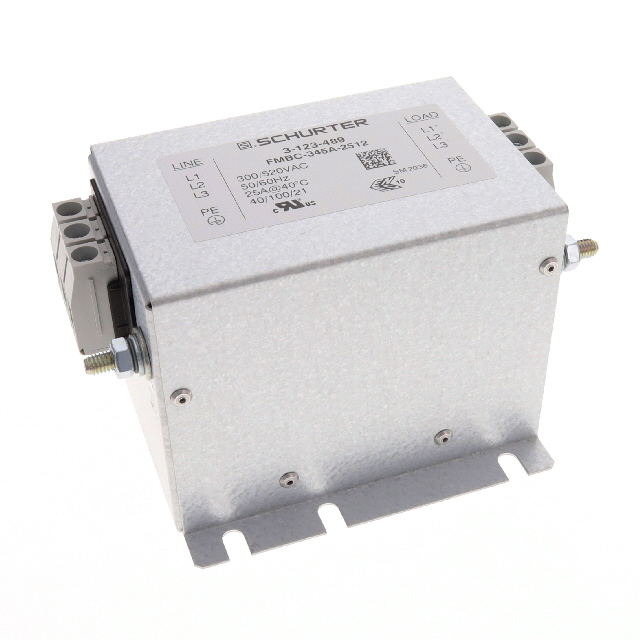

The FMBC-345A-2512 is a three-phase, two-stage RFI power line filter from the Schurter FMBC EP series. It supports a rated current of 25 A and operates at voltages up to 520 V AC. Designed for chassis mounting with screw terminals, it functions within a temperature range of -40°C to 100°C at 50/60 Hz frequencies.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with screw terminal connections
• Compliant with international safety standards including UL and VDE

Power Line Filter Modules Applications

• Industrial automation systems
• Embedded system power conditioning
• General purpose industrial equipment

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (520V AC) against your system requirements. Confirm that the chassis mount style and screw terminal interface match your enclosure design. Ensure the operating temperature range meets your environmental conditions.

Power Line Filter Modules Selection Notes

Select this component when high-performance EMI suppression is required for three-phase loads. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify physical dimensions and mounting hole patterns before integration.

Power Line Filter Modules Part Context

This part belongs to the FMBC EP series, which provides robust electromagnetic compatibility solutions. It is engineered for demanding industrial environments where reliable power quality and noise reduction are critical for system stability.

Power Line Filter Modules Replacement Considerations

Cross-reference with other FMBC series variants for similar electrical specifications. Ensure any substitute maintains the same two-stage topology and chassis mounting constraints.
