FMBC-A91G-J012

Power Line Filter Modules Overview

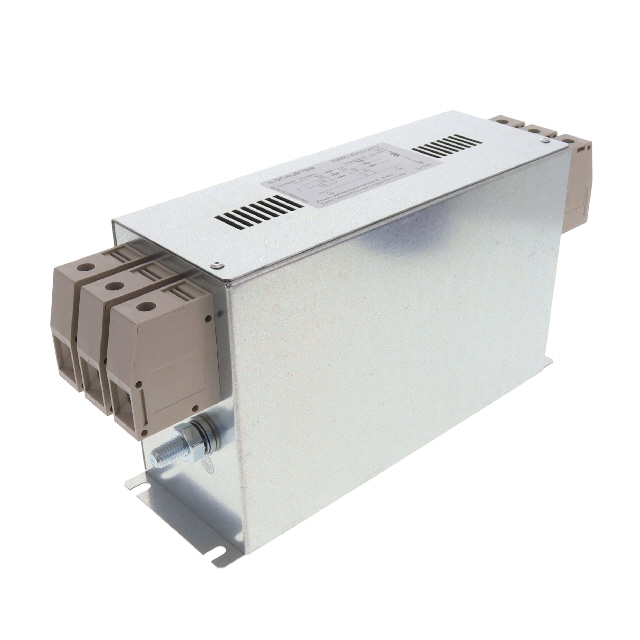

The Schurter FMBC-A91G-J012 is a three-phase, two-stage RFI filter designed for industrial power line applications. It supports a rated current of 100 A and operates at voltages up to 520 V AC within a frequency range of 50 Hz to 60 Hz. The unit features chassis mounting with screw terminals for secure connection. Key electrical parameters include a capacitance value of 6.8 μF and an inductance of 1.9 mH. It exhibits a leakage current of 33 mA and a resistance of 2.5 mΩ. Power loss is specified at 6.8 W. The device functions reliably within a temperature range of -25°C to 100°C. Physical dimensions are 275 mm in length, 85 mm in height, and 50 mm in depth.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Robust chassis mount construction with screw terminal connections
• Compliance with UL, VDE, and IEC/EN safety standards

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the 520 V AC maximum specification before integration. Confirm that the installation environment remains within the -25°C to 100°C operating temperature range to ensure component longevity. Ensure the mechanical mounting structure supports the unit's weight and provides adequate clearance for thermal dissipation during operation.

Power Line Filter Modules Selection Notes

Select this model when high-current three-phase noise suppression is required in compact enclosures. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the 100 A current rating aligns with the load profile. Consider the physical dimensions for panel layout planning. Ensure compatibility with existing screw terminal wiring methods.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, which focuses on high-performance EMC solutions for demanding industrial environments. The series emphasizes compact form factors without compromising current handling capabilities. The FMBC-A91G-J012 represents a delta-connected configuration optimized for standard three-phase power distribution networks.

Power Line Filter Modules Replacement Considerations

FMBC-A91G-J010 is a documented substitute within the same series offering similar specifications.
