FMWAN1156

Antennas RF Overview

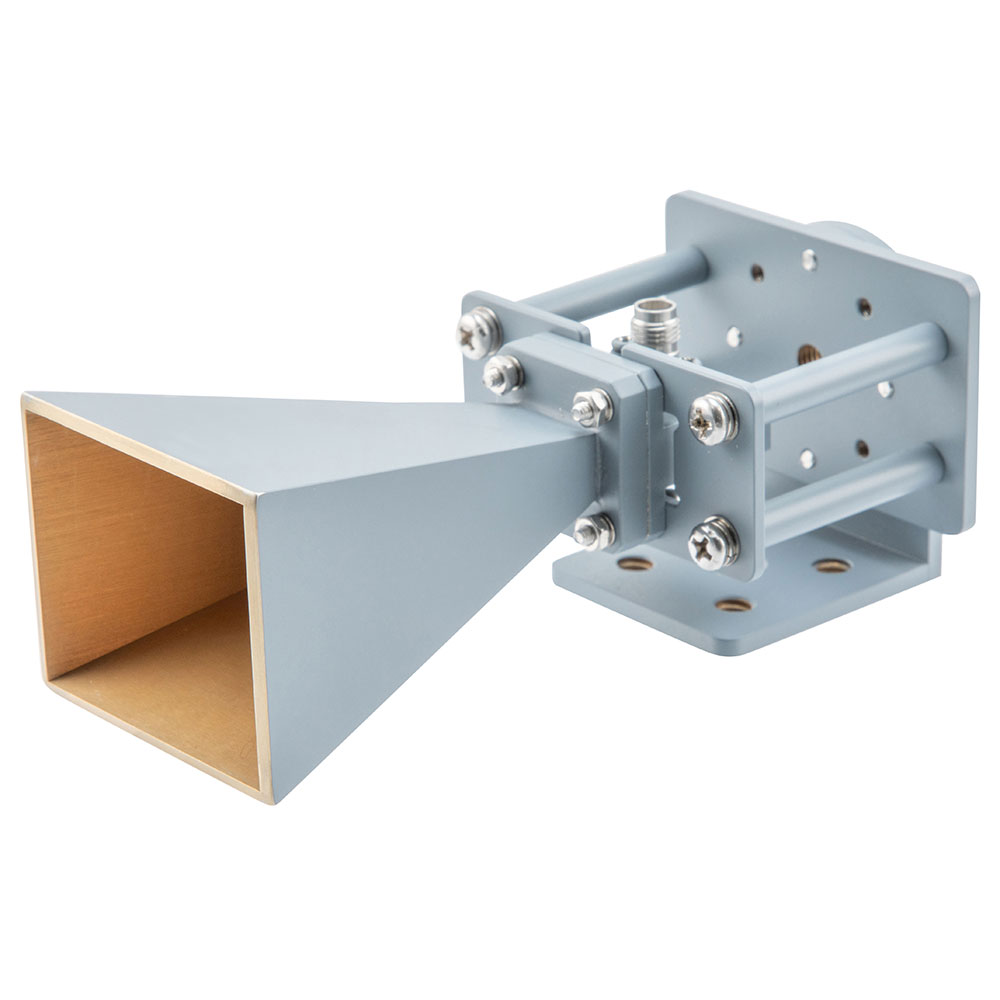

The FMWAN1156 is a broadband gain horn antenna manufactured by Fairview Microwave. It operates within a frequency range of 18 GHz to 50 GHz and provides a nominal gain of 20 dBi. The component features a 2.4mm female connector for signal interface. Designed for outdoor applications, it utilizes a bracket mount installation style. The unit weighs approximately 421.841 grams and is packaged individually in a bag.

Antennas RF Feature Summary

• Broadband operational capability across the 18 GHz to 50 GHz spectrum
• High directional gain performance suitable for precision applications
• Robust mechanical construction designed for outdoor environmental conditions

Antennas RF Applications

• Point-to-point microwave communication links
• Radar system test and measurement setups
• Satellite ground station uplink/downlink interfaces

Antennas RF Procurement Notes

Verify the specific 2.4mm connector gender and mating requirements against your existing RF chain components before ordering. Confirm that the operating frequency band aligns with your system design needs. Ensure mounting hardware compatibility with the specified bracket style. Check regional availability as distribution may be restricted in certain areas.

Antennas RF Selection Notes

Select this model when high gain is required at millimeter-wave frequencies above 18 GHz. The 2.4mm interface dictates compatibility with other 2.4mm series components. Consider the physical size and weight for structural support requirements. Evaluate the beamwidth characteristics if angular coverage is a critical design constraint.

Antennas RF Part Context

This component belongs to Fairview Microwave's line of outdoor broadband horn antennas. It complements lower-frequency SMA-based models like the FMWAN1157 and FMWAN1158 by addressing higher frequency bands. The product series supports various industrial and scientific applications requiring stable radiation patterns at millimeter-wave frequencies.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Direct replacement requires matching the 2.4mm connector type, frequency range, and gain specifications. Alternative solutions must be evaluated based on mechanical fit and electrical performance equivalence.
