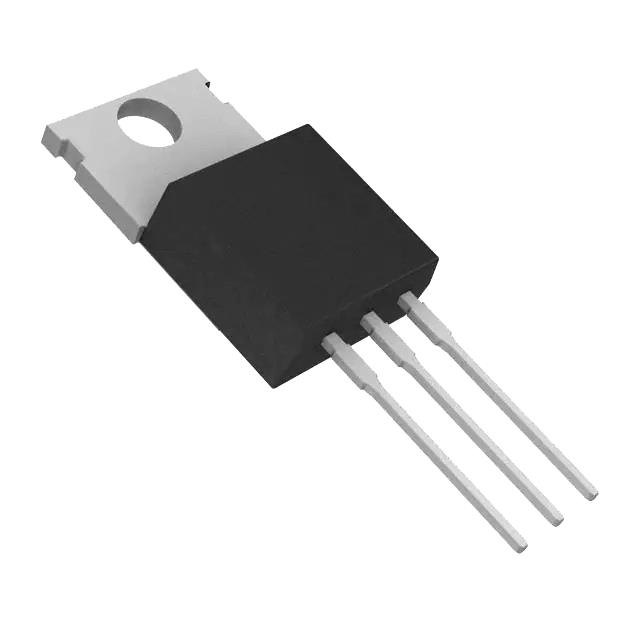

FQP16N25C-F105

Single FETs, MOSFETs Overview

The FQP16N25C-F105 is an N-Channel Enhancement Mode Power MOSFET manufactured by onsemi. It utilizes advanced planar stripe and DMOS technology to achieve low on-resistance and high switching performance. The device features a continuous drain current of 16 A at 25°C case temperature, with a maximum drain-source voltage of 250 V. Key electrical characteristics include a typical gate charge of 41 nC and a typical reverse transfer capacitance (Crss) of 68 pF. It is designed for applications such as switch-mode power supplies, active power factor correction, and electronic lamp ballasts.

Single FETs, MOSFETs Feature Summary

• Advanced planar stripe and DMOS technology for optimized performance
• Low gate charge and reverse transfer capacitance for efficient switching
• High avalanche energy strength capability
• 100% avalanche tested for reliability assurance

Single FETs, MOSFETs Applications

• Switch-mode power supplies
• Active power factor correction circuits
• Electronic lamp ballasts

Single FETs, MOSFETs Procurement Notes

Verify the exact suffix -F105 against official datasheets to confirm packaging and tape-and-reel specifications. Confirm RoHS compliance status through manufacturer documentation. Check for obsolescence notices or lifecycle changes directly from onsemi before finalizing procurement plans.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring robust N-Channel MOSFETs with high avalanche ruggedness. Ensure thermal management supports the specified power dissipation limits. Verify that the 250V rating exceeds the circuit's peak voltage requirements. Consider the TO-220 package constraints for mounting and heat sinking in the final assembly.

Single FETs, MOSFETs Part Context

This part belongs to onsemi's discrete transistor lineup, specifically within the MOSFET category. It represents a standard power switching solution leveraging silicon-based DMOS technology. The product line focuses on balancing conduction losses with switching speeds for general-purpose power electronics applications.

Single FETs, MOSFETs Replacement Considerations

Consult official cross-reference guides for verified substitutes. Ensure replacement parts match the 250V rating, 16A current capacity, and TO-220 package form factor. Verify pinout compatibility and electrical parameters before integration.
