FTMH-110-02-F-DV-A-TR

Headers, Male Pins Overview

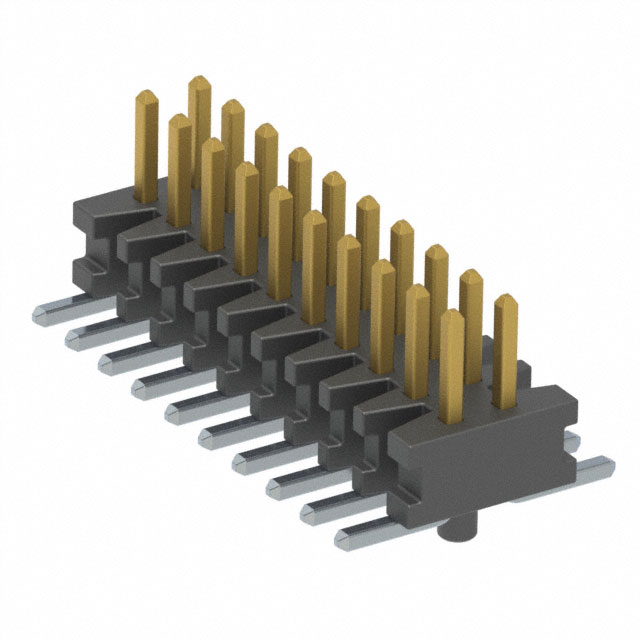

The Samtec FTMH-110-02-F-DV-A-TR is a 1.00 mm surface mount micro terminal strip featuring 20 positions across two rows. It utilizes phosphor bronze contacts with tin plating and liquid crystal polymer insulation rated UL 94 V-0. The connector supports a maximum current of 3.1 A and withstands voltages up to 270 VAC. Operating temperatures range from -55°C to +125°C. This component is designed for board-to-board interconnect applications requiring reliable SMD termination.

Headers, Male Pins Feature Summary

• Surface mount design optimized for automated pick-and-place assembly processes
• Flexible positioning capability accommodating up to 100 I/O configurations within the series
• Micro low profile header construction suitable for space-constrained PCB layouts

Headers, Male Pins Applications

• Board-to-board interconnects in compact electronic assemblies
• High-density signal routing in telecommunications equipment
• Interfacing between daughterboards and motherboards in industrial systems

Headers, Male Pins Procurement Notes

Verify that the specific suffix '-TR' aligns with tape-and-reel packaging requirements for your manufacturing line. Confirm the tin-plated contact finish meets your corrosion resistance standards, as gold options exist. Ensure the 1.00 mm pitch matches your PCB footprint exactly. Cross-reference the UL 94 V-0 rating against your project's flame safety protocols before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this variant when tin-plated contacts are preferred over gold for cost efficiency while maintaining adequate conductivity. The flexible position feature allows adaptation to varying pin counts if designing within the same series family. Verify that the 1.91 mm mating length accommodates your target connector height. Consider the -55°C lower limit for cold-environment deployments.

Headers, Male Pins Part Context

This part belongs to the FTMH series of 1.00 mm surface mount headers. It shares mechanical dimensions with other FTMH variants but differs in contact plating and packaging. The 'F' indicates tin plating, while 'DV' specifies dual row vertical orientation. It complements the broader FTM product line offering various pitch and profile options.

Headers, Male Pins Replacement Considerations

FTMH-110-02-L-DV-A-TR offers identical mechanical specifications with gold-plated contacts instead of tin. FTMH-110-02-F-DV-P provides similar features but may differ in end-shroud configuration. Verify mating compatibility with existing connectors before substituting.
