FTSH-112-01-F-DV-K

$3.47

Description：CONN HEADER SMD 24POS 1.27MM
Series：FTSH
Mfr：Samtec Inc.
Package：Tube

SKU:6a3100f62c5f Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FTSH-112-01-F-DV-K is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 24POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for FTSH-112-01-F-DV-K

Description：CONN HEADER SMD 24POS 1.27MM
Series：FTSH
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.120" (3.05mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.099" (2.51mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Keying Shroud
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3.4A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for FTSH-112-01-F-DV-K

FTSH-112-01-F-DV-K

Headers, Male Pins Overview

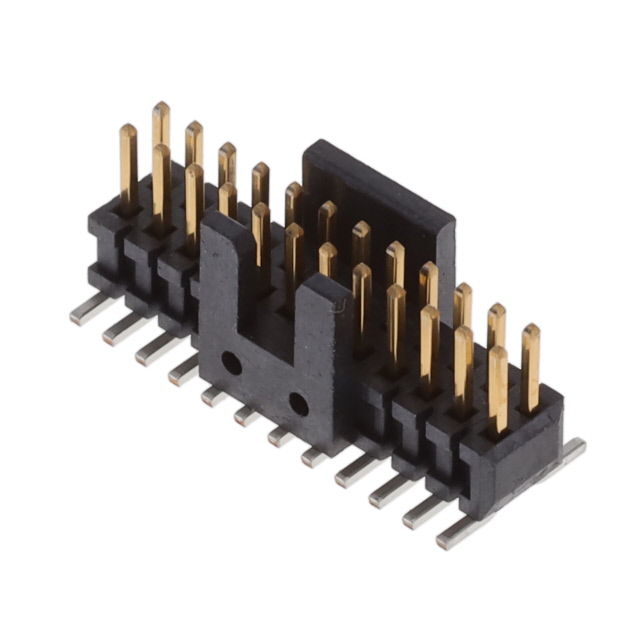

The FTSH-112-01-F-DV-K is a high-reliability header strip from the Samtec FTSH series, designed for board-to-board or cable connections. It features a 0.050-inch (1.27mm) pitch with 24 total positions arranged in two rows of twelve. The connector utilizes phosphor bronze contacts with flash gold plating on the mating interface and tin tails for soldering. It employs a vertical surface-mount termination style with a push-pull locking mechanism and includes an integrated keyed shroud to prevent incorrect installation.

Headers, Male Pins Feature Summary

Integrated keyed shroud prevents incorrect installation
Push-pull locking mechanism secures connection
Vertical surface-mount termination for automated assembly

Headers, Male Pins Applications

Board-to-board interconnects requiring high mating cycles
JTAG debugging interfaces
High-reliability electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against project requirements. Confirm that the 'K' designation matches the necessary keying orientation for the mating housing. Ensure the 'DV' vertical surface-mount footprint aligns with the PCB layout. Cross-reference the manufacturer part number with official Samtec documentation to confirm current production status and environmental compliance.

Headers, Male Pins Selection Notes

Select this component when a 1.27mm pitch header with mechanical keying is required. The flash gold finish offers a cost-effective solution for standard mating cycles compared to thicker gold options. The vertical design suits applications where board stacking height must be minimized. Consider the push-pull feature if frequent disassembly is anticipated.

Headers, Male Pins Part Context

This part belongs to the FTSH series of micro headers, which are characterized by their configurability and high reliability. The series supports various termination styles and orientations. The FTSH-112-01-F-DV-K specifically represents a dual-row vertical surface-mount variant with keying, distinct from single-row or through-hole configurations within the same family.
