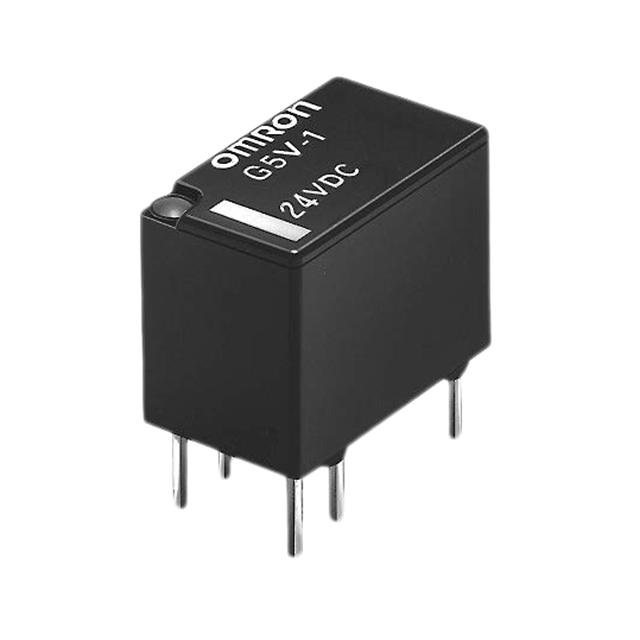

G5V-1-T90 DC24

Product Detailed Parameters

• Description：RELAY GEN PURPOSE SPDT 1A 24V
• Series：G5V-1
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：125VAC, 60VDC - Max
• Load - Max Switching：125VA, 60W
• Coil Current：6.3 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：16.8 VDC
• Must Release Voltage：2.4 VDC
• Operate Time：5 ms
• Release Time：5 ms
• Operating Temperature：-40°C ~ 90°C
• Contact Material：Silver (Ag), Gold (Au)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
