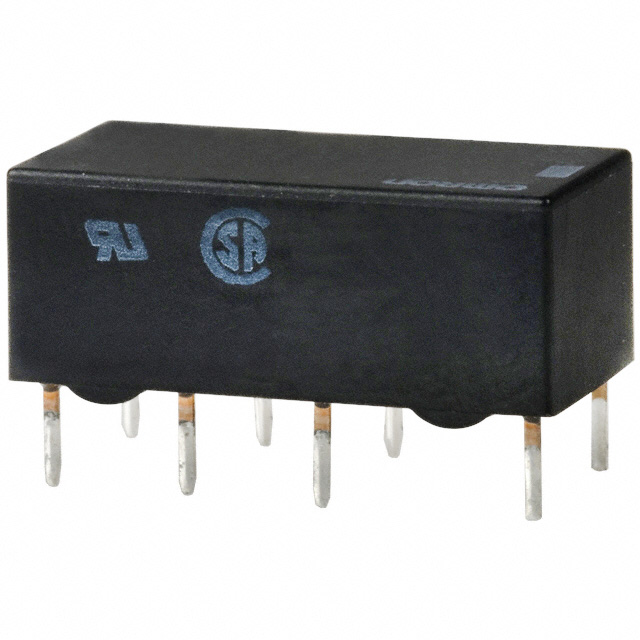

G6A-234P-BS-DC4.5

G6A-234P-BS-DC4.5 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE DPDT 1A 4.5V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for G6A-234P-BS-DC4.5

• Description：RELAY GEN PURPOSE DPDT 1A 4.5V
• Series：G6A
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：4.5VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：250VAC, 220VDC - Max
• Load - Max Switching：250VA, 220W
• Coil Current：44.4 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：3.15 VDC
• Must Release Voltage：0.45 VDC
• Operate Time：5 ms
• Release Time：3 ms
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Palladium (AgPd), Gold (Au)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for G6A-234P-BS-DC4.5
