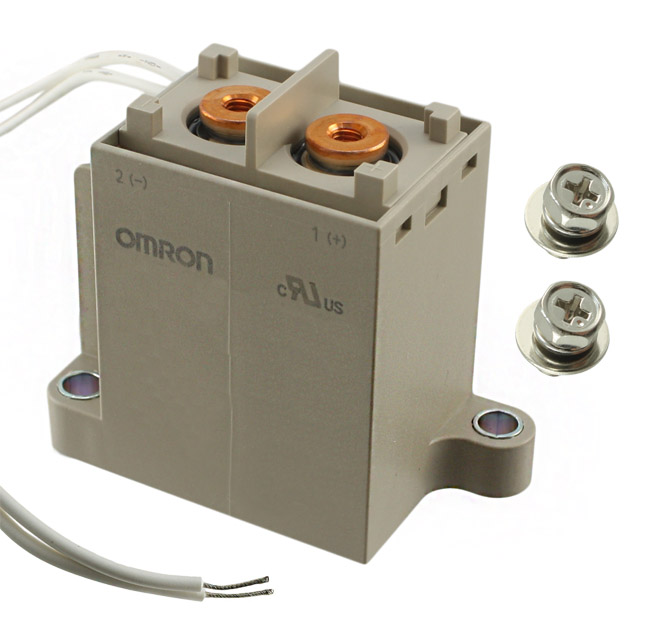

G9EA-1-CA-DC60

G9EA-1-CA-DC60 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 30A 60V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G9EA-1-CA-DC60

• Description：RELAY GEN PURPOSE SPST 30A 60V
• Series：G9EA-1
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk,Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：60VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：30 A
• Switching Voltage：400VDC - Max
• Load - Max Switching：12000W
• Coil Current：86.2 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Wire Leads
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：45 VDC
• Must Release Voltage：4.8 VDC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：-
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：50 ms
• Release Time：30 ms

Power Relays, Over 2 Amps datasheet and documents for G9EA-1-CA-DC60
