HCMB1111-200

$0.83

Description：CMC 20UH 500MA 2LN 3 KOHM TH
Series：HCMB1111-200
Mfr：Allied Components International
Package：Tube

SKU:702e42f67225 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

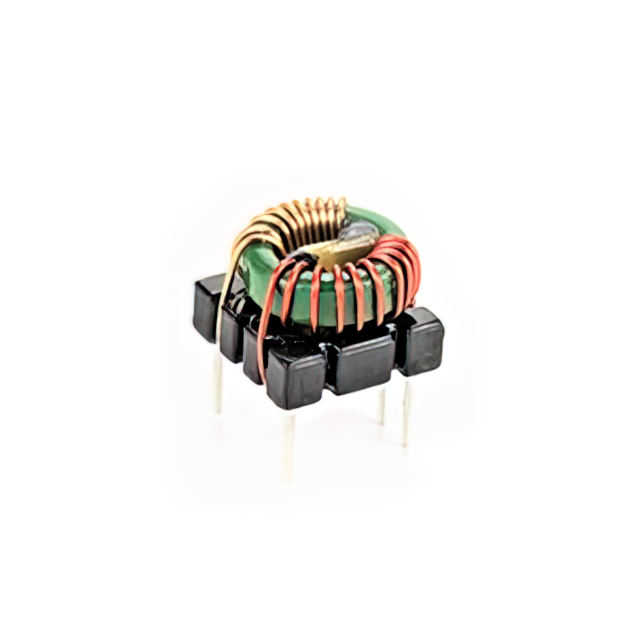

HCMB1111-200 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Allied Components International. Its product description is CMC 20UH 500MA 2LN 3 KOHM TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HCMB1111-200

Description：CMC 20UH 500MA 2LN 3 KOHM TH
Series：HCMB1111-200
Mfr：Allied Components International
Package：Tube
Filter Type：-
Number of Lines：2
Current Rating (Max)：500mA
DC Resistance (DCR) (Max)：65mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：110°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.492" Dia (12.50mm)
Height (Max)：0.551" (14.00mm)
Package / Case：Horizontal, 8 PC Pin
Inductance @ Frequency：20 µH @ 1 kHz
Impedance @ Frequency：3 kOhms @ 97 MHz
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for HCMB1111-200

HCMB1111-200

Common Mode Chokes Overview

The HCMB1111-200 is a common mode choke manufactured by Allied Components International. This component provides an inductance of 20uH at a frequency of 1kHz and exhibits a DC resistance of 65mΩ. It is designed for EMI suppression applications within magnetic component modules.

Common Mode Chokes Feature Summary

Designed as a common mode choke for electromagnetic interference suppression
Manufactured by Allied Components International, a provider of standard and custom magnetic components

Common Mode Chokes Applications

Networking equipment
Telecommunications systems
Power conversion circuits

Common Mode Chokes Procurement Notes

Verify the specific datasheet version before procurement to ensure compatibility with design requirements. Confirm that the 20uH inductance and 65mΩ resistance values align with circuit specifications. Check current ratings if available in official documentation. Ensure the package type matches the intended PCB layout constraints.

Common Mode Chokes Selection Notes

Select this component when a common mode choke with 20uH inductance is required for signal line filtering. The low DC resistance of 65mΩ suggests suitability for applications where minimal voltage drop is critical. Consider the physical dimensions and mounting style relative to the assembly process.

Common Mode Chokes Part Context

Allied Components International designs and manufactures industry-standard and custom magnetic components. The company has been established since 1992 and produces various transformers and inductors for commercial and industrial markets. The HCMB1111-200 falls under their range of EMI suppression components.
