HHBC20-1R7A0097V

Common Mode Chokes Overview

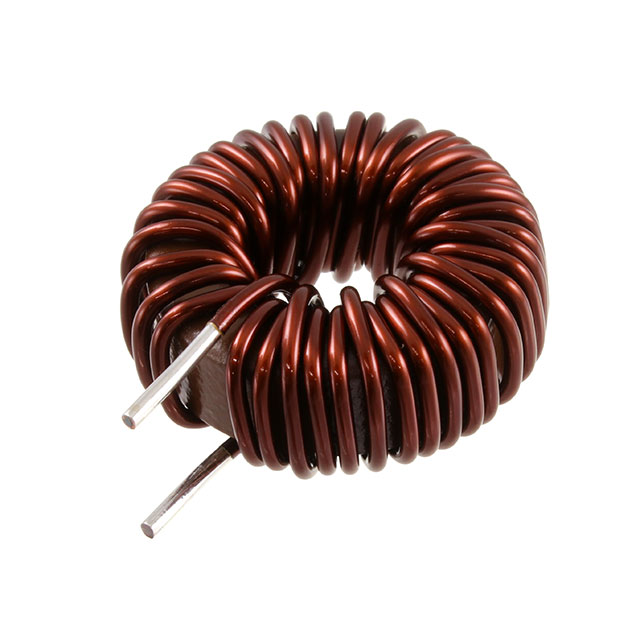

The KEMET HHBC20-1R7A0097V is a leaded toroidal common mode inductor from the SHBC series. It features an inductance of 97 µH with a tolerance of ±20%. The component supports a maximum DC current of 12 A and has a maximum DC resistance of 16 mΩ. Designed for through-hole PCB mounting, it operates within a temperature range of -40 °C to +125 °C. The unshielded unit measures 41.2 mm in length and width, with a height of 20.3 mm.

Common Mode Chokes Feature Summary

• Toroidal core construction for efficient magnetic flux containment
• Radial lead termination for standard through-hole integration
• High current handling capability suitable for power line filtering

Common Mode Chokes Applications

• AC line filter circuits
• Normal mode noise suppression
• Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure accuracy, as similar suffixes may exist. Confirm RoHS compliance status directly with the supplier or datasheet. Check for any specific customer impact statements regarding manufacturing origin changes before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a high-current common mode choke is required for AC line applications. Ensure the PCB layout accommodates the radial leads and the physical dimensions of the toroidal core. Verify that the operating environment stays within the specified -40 °C to +125 °C range for reliable performance.

Common Mode Chokes Part Context

This component belongs to the KEMET SHBC series of power inductors. These parts are designed for robust performance in industrial and commercial power electronics. The series offers various inductance values tailored for different filtering requirements while maintaining consistent physical footprints for design flexibility.

Common Mode Chokes Replacement Considerations

Cross-reference with PHBC20-1R7A0097V if available, though package differences must be evaluated. Verify electrical equivalence including inductance, current rating, and DCR before substitution.
