HTSW-118-07-G-D

Headers, Male Pins Overview

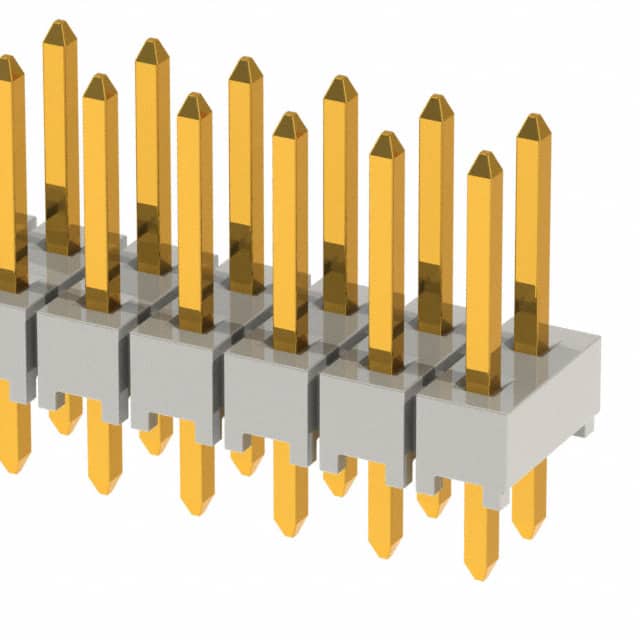

The HTSW-118-07-G-D is a vertical board-to-board header manufactured by Samtec Inc. It features 36 positions arranged in two rows, providing a total of 36 male pin contacts. The connector utilizes a 0.100 inch (2.54 mm) pitch and is designed for through-hole termination. The housing is constructed from natural-colored liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with gold plating on both the mating and post surfaces. It operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style for secure board-to-board or cable connections
• Gold-plated phosphor bronze contacts ensure reliable conductivity and corrosion resistance
• Liquid crystal polymer insulation provides high thermal stability and UL94 V-0 rating

Headers, Male Pins Applications

• High-density electronic assemblies requiring vertical interconnection
• Industrial control systems utilizing standard 2.54mm spacing
• Consumer electronics manufacturing involving board stacking

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm contact count and row configuration. Ensure compatibility with mating connectors regarding pitch and height specifications. Check RoHS compliance status if required by project regulations. Confirm that the through-hole termination method aligns with the target PCB fabrication capabilities.

Headers, Male Pins Selection Notes

Select this component when a standard 0.100 inch pitch header is required for vertical mounting. The dual-row configuration supports higher density compared to single-row alternatives. Consider the operating temperature range and material flammability ratings for environmental suitability. Verify that the gold plating thickness meets the application's wear and cycle life requirements.

Headers, Male Pins Part Context

This component belongs to the HTSW series of unshrouded terminal strip headers from Samtec. The series offers various position counts and row configurations to suit different connectivity needs. The HTSW designation indicates a standard height header with through-hole solder terminals, distinct from surface mount or right-angle variants within the broader product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Samtec HTSW series headers with identical 36-position, 2-row, 0.100-inch pitch specifications. Ensure any replacement maintains the same through-hole termination and vertical orientation. Verify that alternative manufacturers offer equivalent contact materials and insulation properties.
