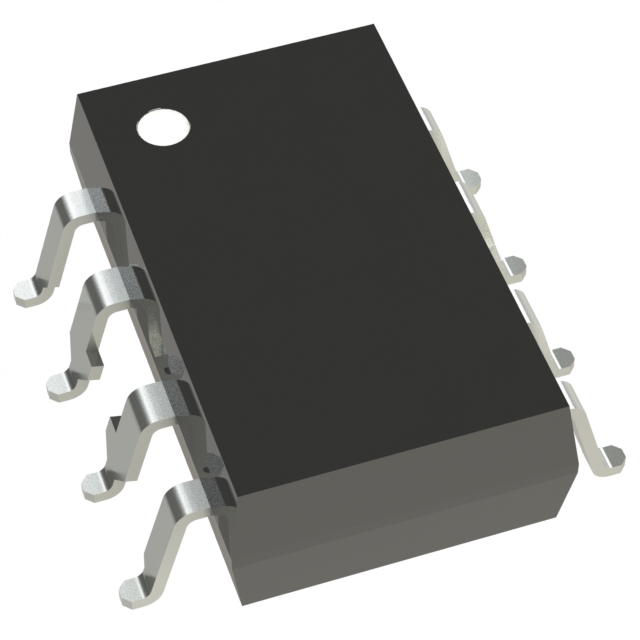

IL300-DEFG-X009

Transistor, Photovoltaic Output Optoisolators Overview

The IL300-DEFG-X009 is a high linearity optocoupler featuring a single channel with an 8-SMD package. It utilizes a photovoltaic linearized output type, providing stable transfer gain and wide bandwidth capabilities. The device supports DC input signals and offers robust isolation characteristics with a voltage rating of 4420Vrms. Key electrical parameters include a maximum forward current of 60mA, a typical forward voltage of 1.25V, and a peak output voltage of 500mV. The component operates within a temperature range of -55°C to 100°C and exhibits typical rise and fall times of 1µs.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• High linearity performance ensuring accurate signal transmission
• Wide bandwidth capability for fast response applications
• Stable transfer gain for consistent amplification
• Photovoltaic linearized output configuration

Transistor, Photovoltaic Output Optoisolators Applications

• Analog signal isolation in industrial control systems
• Precision measurement equipment interfaces
• Data acquisition system isolation barriers
• Medical instrumentation signal processing

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix X009 corresponds to the required tape and reel packaging format when ordering. Confirm that the 4420Vrms isolation rating meets the safety requirements of the target application environment. Ensure the operating temperature range aligns with the thermal conditions of the final assembly. Cross-reference the datasheet specifications against the design-in requirements to guarantee compatibility with existing circuit topologies.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high fidelity analog signal transfer across isolation barriers is critical. The wide bandwidth and stable gain make it suitable for precision applications where distortion must be minimized. Consider the 8-SMD package constraints for PCB layout space. Evaluate the thermal management needs given the 100°C maximum junction temperature limit during continuous operation.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the Vishay IL300 series, which is designed for high-performance linear isolation tasks. The series is known for its superior linearity compared to standard digital optocouplers. The IL300-DEFG variant specifically denotes the PDIP package version in some contexts, but the X009 suffix indicates the SMD configuration. It serves as a bridge between low-level analog sensors and digital processing units while maintaining galvanic isolation.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

IL300-X009T is a confirmed substitute part number within the same family offering identical functional specifications.
