IS25LP016D-JBLA3

Memory IC Overview

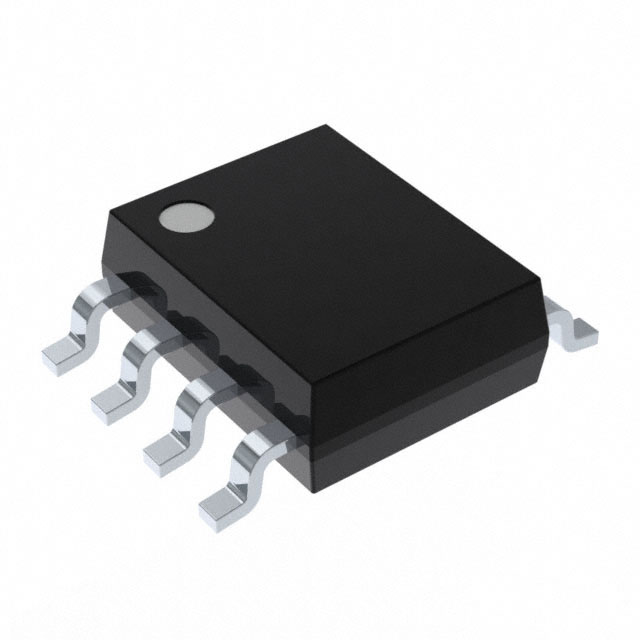

The IS25LP016D-JBLA3 is a 16 Mbit Serial NOR Flash memory device manufactured by ISSI. It operates within a supply voltage range of 2.3 V to 3.6 V and supports a maximum clock frequency of 133 MHz. The device features an SPI interface with synchronous timing and an 8-bit data bus width, organized as 2 M x 8. It is housed in an 8-SOIC surface-mount package and is rated for operation between -40°C and +125°C.

Memory IC Feature Summary

• Supports high-speed serial peripheral interface (SPI) communication with synchronous timing capabilities.
• Operates across a wide industrial temperature range suitable for demanding environments.
• Provides non-volatile storage with low power consumption characteristics.

Memory IC Applications

• Embedded systems requiring code execution from flash memory
• Industrial control applications needing reliable data storage
• Consumer electronics utilizing compact memory solutions

Memory IC Procurement Notes

Verify the specific suffix JBLA3 against the manufacturer's current datasheet to confirm pinout and electrical specifications match your design requirements. Ensure compatibility with your system's voltage levels and interface protocols before integration. Check for any recent lifecycle status updates or alternative recommendations from ISSI.

Memory IC Selection Notes

Select this component when a 16 Mbit capacity is required with support for high-speed SPI operations up to 133 MHz. It is suitable for designs needing a wide operating temperature range and a standard 8-SOIC footprint. Consider the 2.3 V to 3.6 V supply requirement to ensure it aligns with your system's power rails.

Memory IC Part Context

This part belongs to the IS25LP016D series of Serial NOR Flash memories from ISSI. These devices are designed for general-purpose storage and code execution applications. The series offers various packaging options and temperature grades to meet diverse industry standards.

Memory IC Replacement Considerations

Check ISSI documentation for direct pin-to-pin replacements within the IS25LP016 family. Verify if other suffixes like JBLE offer identical functionality with different environmental ratings or packaging variations.
