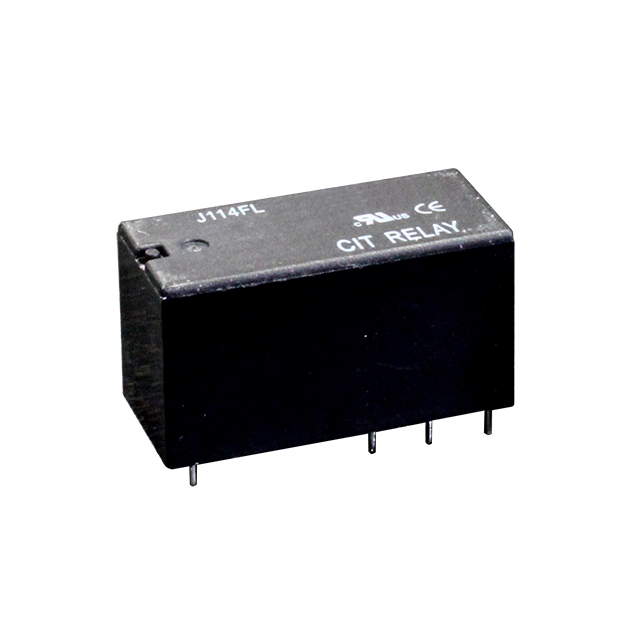

J114FL1CS165VDC.41

J114FL1CS165VDC.41 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is RELAY GEN PURPOSE SPDT 16A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for J114FL1CS165VDC.41

• Description：RELAY GEN PURPOSE SPDT 16A 5V
• Series：J114FL
• Mfr：CIT Relay and Switch
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：5VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：16 A
• Switching Voltage：380VAC, 110VDC - Max
• Load - Max Switching：6080VA, 1760W
• Coil Current：80.6 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：3.75 VDC
• Must Release Voltage：0.5 VDC
• Operating Temperature：-55°C ~ 105°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for J114FL1CS165VDC.41
