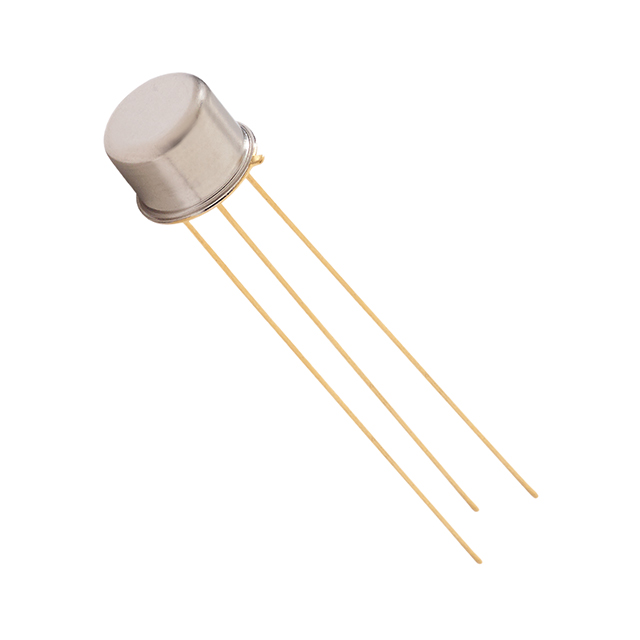

JANTXV2N4150

Single Bipolar Transistors Overview

The JANTXV2N4150 is a military-grade NPN bipolar junction transistor (BJT) manufactured by MACOM Technology Solutions. It is designed for high-power applications within the TO-5 metal can package. Key electrical specifications include a collector-emitter breakdown voltage of 70 V and a maximum continuous collector current of 10 A. The device supports a maximum power dissipation of 160 W. It meets MIL-PRF-19500 qualification standards, ensuring reliability in harsh environments. The minimum DC current gain (hFE) is specified as 40 at a collector current of 5 A and a collector-emitter voltage of 5 V.

Single Bipolar Transistors Feature Summary

• Military-grade construction compliant with MIL-PRF-19500 standards for enhanced reliability.
• High-power capability with 160 W dissipation rating in a hermetically sealed TO-5 metal can.
• Robust NPN switching performance with 10 A collector current capacity.

Single Bipolar Transistors Applications

• High-reliability military electronic systems
• Aerospace power switching circuits
• Harsh environment industrial control units

Single Bipolar Transistors Procurement Notes

Verify that the specific part number includes the 'JAN' prefix to ensure compliance with Military PRF-19500 requirements. Confirm the presence of the 'TXV' suffix, which indicates screened components for higher reliability levels compared to standard commercial grades. Ensure the package matches the TO-5 metal can specification. Request full datasheets and material certificates from authorized distributors to validate authenticity and traceability before procurement.

Single Bipolar Transistors Selection Notes

Select this component when high-voltage handling and significant current capacity are required in a ruggedized form factor. The 70 V breakdown voltage suits moderate voltage applications, while the 10 A current rating supports substantial load driving. Consider the TO-5 package for superior thermal management and environmental sealing compared to plastic alternatives. This transistor is appropriate for designs prioritizing long-term stability and resistance to extreme conditions over miniaturization.

Single Bipolar Transistors Part Context

This component belongs to the family of high-power discrete semiconductors produced by MACOM Technology Solutions. It serves as a robust switching element in analog and digital power circuits. The TO-5 package provides a standardized footprint for through-hole mounting, facilitating integration into legacy and modern military hardware. Its design focuses on durability and consistent performance under stress.

Single Bipolar Transistors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must consult official manufacturer cross-reference guides or engineering change notices for verified equivalents. Direct replacement requires matching all electrical parameters, package dimensions, and qualification standards to ensure system compatibility.
