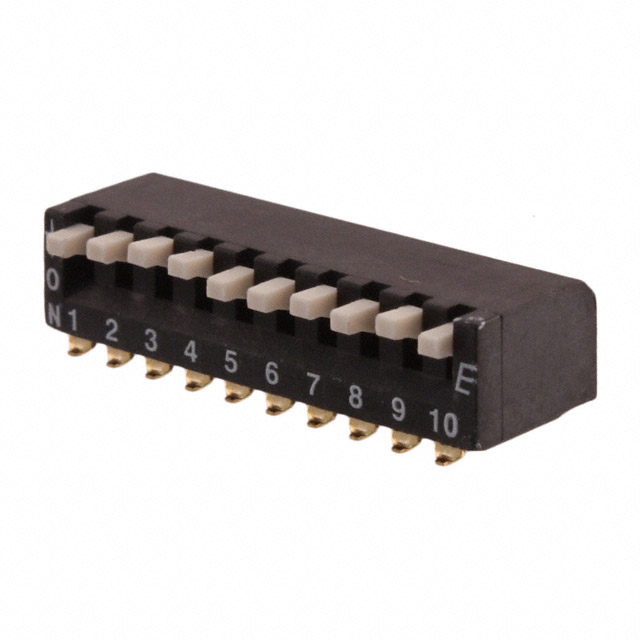

Dip Switches KAR10LGGT product image

KAR10LGGT

Description：SWITCH PIANO DIP SPST 0.025A 24V
Series：KAR
Mfr：E-Switch
Package：Tube

SKU:e857a0901192 Category: DIP Switches Brand: E-Switch

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

KAR10LGGT is listed in the Dip Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH PIANO DIP SPST 0.025A 24V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for KAR10LGGT

Description：SWITCH PIANO DIP SPST 0.025A 24V
Series：KAR
Mfr：E-Switch
Package：Tube
Circuit：SPST
Number of Positions：10
Current Rating (Amps)：25mA
Voltage Rating：24VDC
Actuator Type：Piano
Actuator Level：Raised
Contact Material：Copper Alloy
Contact Finish：Gold
Height Above Board：0.287" (7.30mm)
Mounting Type：Surface Mount, Right Angle
Termination Style：Gull Wing
Pitch：0.100" (2.54mm), Full
Washable：Yes
Features：Process Sealed
Operating Temperature：-30°C ~ 85°C

Dip Switches datasheet and documents for KAR10LGGT
