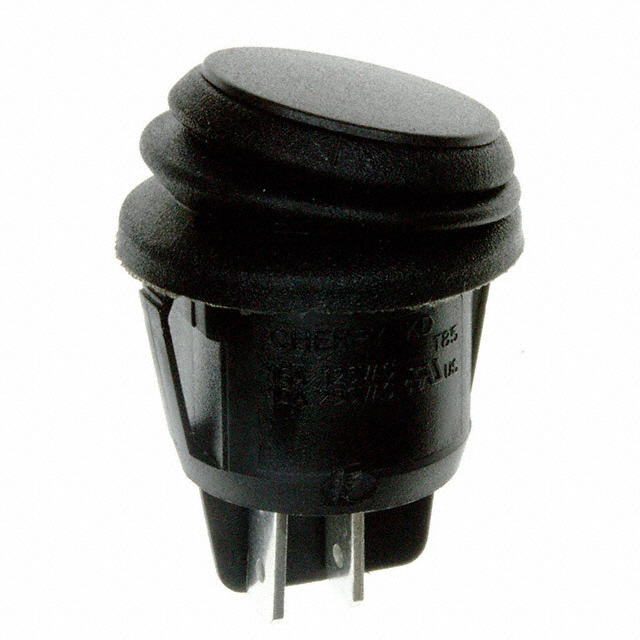

Rocker Switches KDH3ANA1BBB product image

KDH3ANA1BBB

$4.00
  • Description：SWITCH ROCKER DPST 16A 125V
  • Series：KD
  • Mfr：ZF Electronics
  • Package：Box

SKU:d47a40b8895f Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

KDH3ANA1BBB is listed in the Rocker Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH ROCKER DPST 16A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for KDH3ANA1BBB

  • Description：SWITCH ROCKER DPST 16A 125V
  • Series：KD
  • Mfr：ZF Electronics
  • Package：Box
  • Mounting Type：Panel Mount, Snap-In
  • Circuit：DPST
  • Switch Function：On-Off
  • Current Rating (Amps)：16A (AC), 10A (DC)
  • Voltage Rating - AC：125 V
  • Voltage Rating - DC：28 V
  • Actuator Type：Round
  • Color - Actuator/Cap：Black
  • Actuator Marking：No Marking
  • Illumination Type, Color：-
  • Illumination Voltage (Nominal)：-
  • Termination Style：Quick Connect - 0.187" (4.7mm)
  • Ingress Protection：IP65 - Dust Tight, Water Resistant
  • Features：-
  • Panel Cutout Dimensions：Circular - 20.00mm Dia
  • Operating Temperature：-25°C ~ 85°C
  • Approval Agency：-

Rocker Switches datasheet and documents for KDH3ANA1BBB

KDH3ANA1BBB
