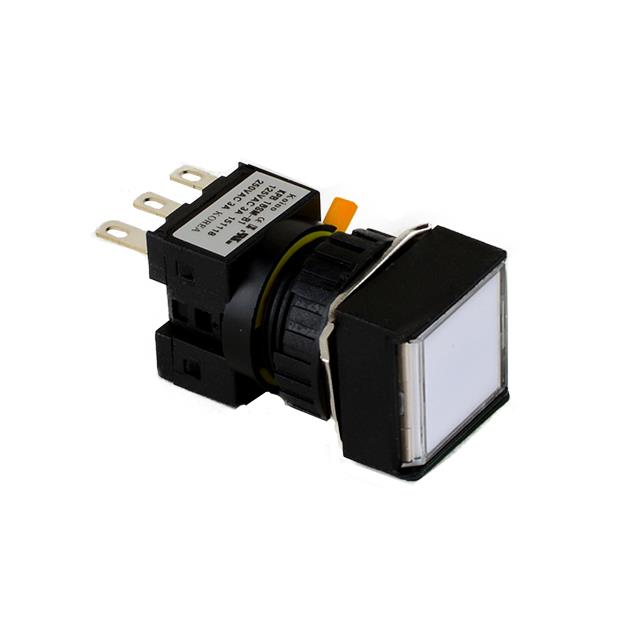

KPB16SAT-W2

KPB16SAT-W2 is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists KOINO. Its product description is 16mm PUSH BUTTON. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for KPB16SAT-W2

• Description：16mm PUSH BUTTON
• Series：K
• Mfr：KOINO
• Package：Bulk
• Mounting Type：Panel Mount, Front
• Type：Standard
• Circuit：4PST-2NO/2NC
• Switch Function：On-Off, Off-On
• Current Rating (Amps)：3A (AC), 270mA (DC)
• Actuator Type：Square, Button
• Actuator Marking：No Marking
• Color - Actuator/Cap：White
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder, Quick Connect - 0.110" (2.8mm)
• Ingress Protection：IP40
• Features：-
• Panel Cutout Dimensions：Circular - 16.20mm Dia
• Operating Temperature：-15°C ~ 60°C
• Voltage Rating - DC：250 V
• Voltage Rating - AC：250 V

Pushbutton Switches datasheet and documents for KPB16SAT-W2
