L313

$78.34

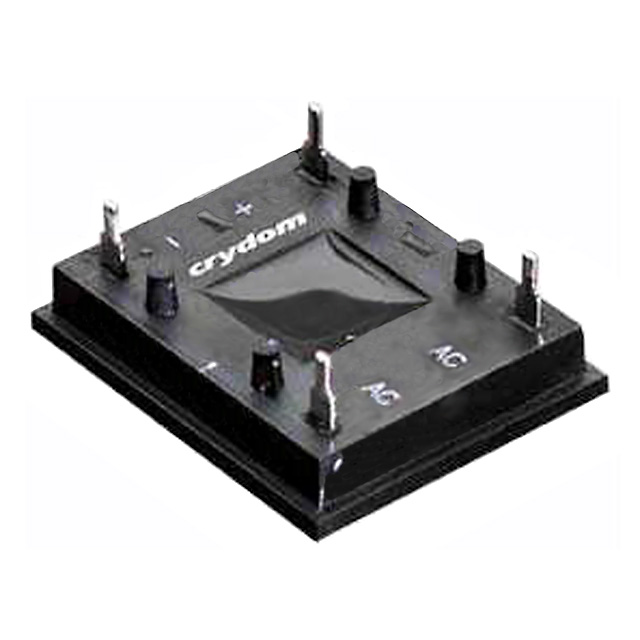

Description：MODULE SCR/DIODE 15A 280VAC PCB
Series：L

SKU:9461625dc71f Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

L313 is listed in the SCRs - Modules range at ChipApex. The manufacturer field lists Sensata-Crydom. Its product description is MODULE SCR/DIODE 15A 280VAC PCB. Review the specifications below when checking this part for your BOM.

SCRs - Modules specifications for L313

Description：MODULE SCR/DIODE 15A 280VAC PCB
Series：L
Mfr：Sensata-Crydom
Package：Bulk
Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes：2 SCRs, 2 Diodes
Voltage - Off State：800 V
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：2250A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Through Hole
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：2.5 V
Current - Gate Trigger (Igt) (Max)：100 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

SCRs - Modules datasheet and documents for L313

L313

SCRs - Modules Overview

The Sensata-Crydom L313 is a discrete semiconductor module integrating silicon-controlled rectifiers (SCRs) and diodes, rated for 15 amperes at 280 volts AC. Designed for printed circuit board mounting, this component serves as a robust switching element in power control applications. The module provides reliable electrical isolation and high current handling capabilities within a compact form factor suitable for industrial and commercial electronic systems requiring precise AC power regulation.

SCRs - Modules Feature Summary

Integrates SCR and diode components in a single package
Designed for direct printed circuit board installation
Provides high current switching capability at low voltage ratings

SCRs - Modules Applications

AC power control circuits
Industrial electronic switching systems
Low voltage power regulation modules

SCRs - Modules Procurement Notes

Verify the specific datasheet version to confirm pinout configuration and thermal requirements before integration. Ensure that the PCB layout supports the required current density and heat dissipation characteristics specified for the 15A rating. Cross-reference the manufacturer's latest documentation to confirm compliance with current environmental standards and material specifications.

SCRs - Modules Selection Notes

Select this module when a combined SCR and diode solution is required for low-voltage AC applications. Consider the 280V rating limit and 15A continuous current capacity against system demands. Evaluate the PCB mounting style against available space constraints and ensure adequate thermal management infrastructure is present on the target circuit board design.

SCRs - Modules Part Context

This component belongs to the Sensata-Crydom discrete semiconductor product category, specifically focusing on power control modules. It complements their broader range of solid-state relays and thyristor-based solutions by offering a modular approach for custom power electronics designs where integrated switching elements are preferred over standalone discrete components.
