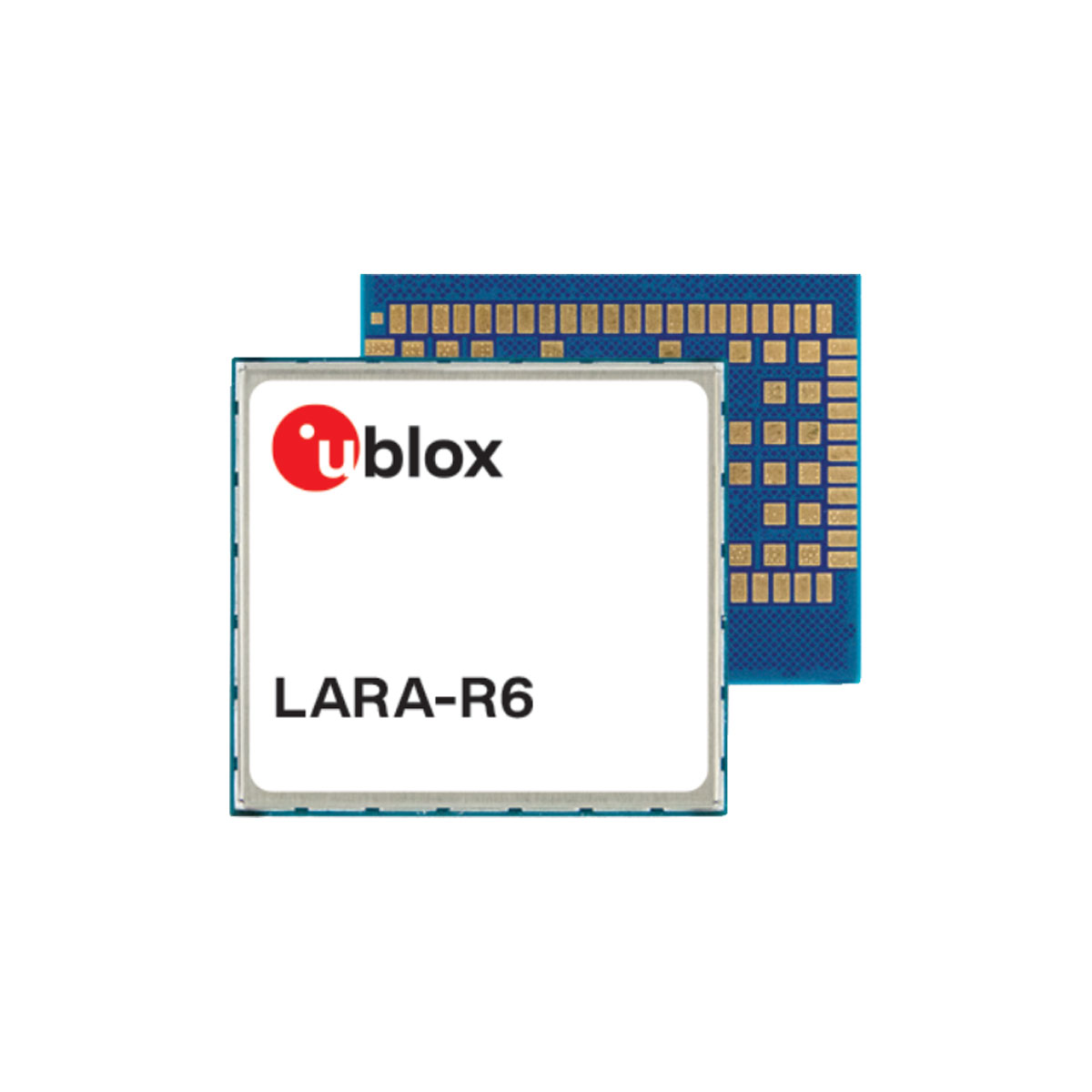

LARA-R6001D-01B

$90.32

Description：GLOBAL LTE CAT 1 DATA-ONLY MOD
Series：LARA-R6
Mfr：u-blox
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b524a7bf214d Category: RF Transceiver Modules and Modems Brand: u-blox

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LARA-R6001D-01B is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists u-blox. Its product description is GLOBAL LTE CAT 1 DATA-ONLY MOD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for LARA-R6001D-01B

Description：GLOBAL LTE CAT 1 DATA-ONLY MOD
Series：LARA-R6
Mfr：u-blox
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：Cellular, Navigation
Protocol：CDMA, EDGE, GNSS, GPRS, GSM, HSDPA, HSPA, HSUPA, LTE, UMTS, WCDMA
Modulation：GMSK, QPSK
Frequency：700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.6GHz
Data Rate：10.3Mbps
Power - Output：33dBm
Sensitivity：-115dBm
Serial Interfaces：GPIO, I2C, I2S, UART, USB
Antenna Type：Antenna Not Included
Utilized IC / Part：-
Memory Size：-
Voltage - Supply：2.8V ~ 4.5V
Current - Receiving：1.1mA ~ 650mA
Current - Transmitting：200mA ~ 1.5A
Mounting Type：Surface Mount
Operating Temperature：-40°C ~ 85°C
Package / Case：100-SMD Module

RF Transceiver Modules And Modems datasheet and documents for LARA-R6001D-01B

LARA-R6001D-01B

RF Transceiver Modules And Modems Overview

The LARA-R6001D-01B is a single-mode LTE Cat 1 module from the LARA-R6 series. It supports FDD and TDD standards with global band coverage including B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, and B28. The module features integrated GNSS positioning capabilities. Physical dimensions are 24 mm x 26 mm x 2.6 mm. Operating voltage ranges from 2.8 V to 4.5 V. Interfaces include UART, USB, I2C, GPIO, and I2S. Operating temperature spans -40°C to +85°C.

RF Transceiver Modules And Modems Feature Summary

Supports LTE Cat 1 FDD and TDD standards for reliable global connectivity
Integrates GNSS positioning engine for location services
Includes secure boot and secure update design for enhanced security
Provides multiple interface options including UART, USB, and GPIO

RF Transceiver Modules And Modems Applications

Smart utility metering
Connected health and patient monitoring
Security and video surveillance systems
Asset tracking solutions

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix '01B' against official u-blox documentation to confirm hardware revision and feature set. Ensure compatibility with existing system interfaces such as UART or USB. Confirm that the required frequency bands align with target regional network deployments. Check for any specific antenna requirements associated with this module variant.

RF Transceiver Modules And Modems Selection Notes

Select this module when LTE Cat 1 performance is required with integrated GNSS functionality. It is suitable for applications needing global cellular coverage and precise location data. Consider the operating temperature range and physical dimensions for integration into compact devices. Evaluate power supply requirements within the specified voltage range of 2.8 V to 4.5 V.

RF Transceiver Modules And Modems Part Context

The LARA-R6001D-01B belongs to the LARA-R6 series, which consists of robust LTE Cat 1 modules designed for IoT applications. This series emphasizes secure cloud connectivity and reliable performance across various industries. The module supports standard AT commands per 3GPP specifications, facilitating easy integration and control in embedded systems.
