LCAT1007-01

Attenuators Overview

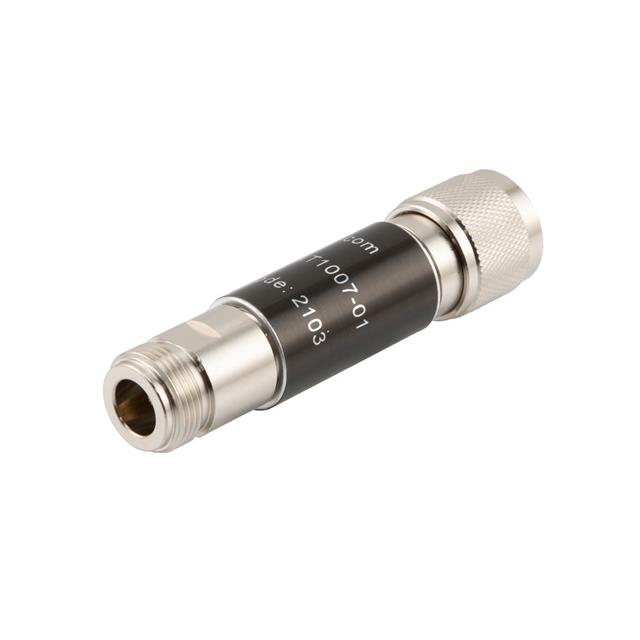

The LCAT1007-01 is a connectorized RF fixed attenuator manufactured by L-com. It provides an attenuation value of 1 dB with a frequency range extending from DC to 18 GHz. The device operates at a maximum input power of 2 W and maintains a characteristic impedance of 50 Ohms. It features N-type male and female connectors for inline integration. The unit has a VSWR of 1.35:1 and functions within an operating temperature range of -55°C to +125°C.

Attenuators Feature Summary

• Provides precise signal attenuation in high-frequency RF applications
• Supports broadband operation from DC up to 18 GHz
• Constructed with durable aluminum housing for thermal stability

Attenuators Applications

• RF test and measurement equipment calibration
• Signal conditioning in wireless communication systems
• Attenuation stages in microwave circuit design

Attenuators Procurement Notes

Verify the specific attenuation value matches system requirements, as this model provides 1 dB. Confirm connector gender compatibility (N-Type Male/Female) for the intended interconnect application. Check datasheet specifications for VSWR and power handling limits to ensure suitability for the target RF environment.

Attenuators Selection Notes

Select this component when a low attenuation value of 1 dB is required for frequencies up to 18 GHz. Ensure the system impedance is 50 Ohms to match the device specification. Consider the physical dimensions and weight if space constraints exist within the assembly.

Attenuators Part Context

This part belongs to the LCAT series of passive connectorized attenuators from L-com. These components are designed for reliable performance in RF interconnect applications. The series offers various attenuation values while maintaining consistent electrical characteristics across the frequency band.

Attenuators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
