LDFL013412VV-V0E

Common Mode Chokes Overview

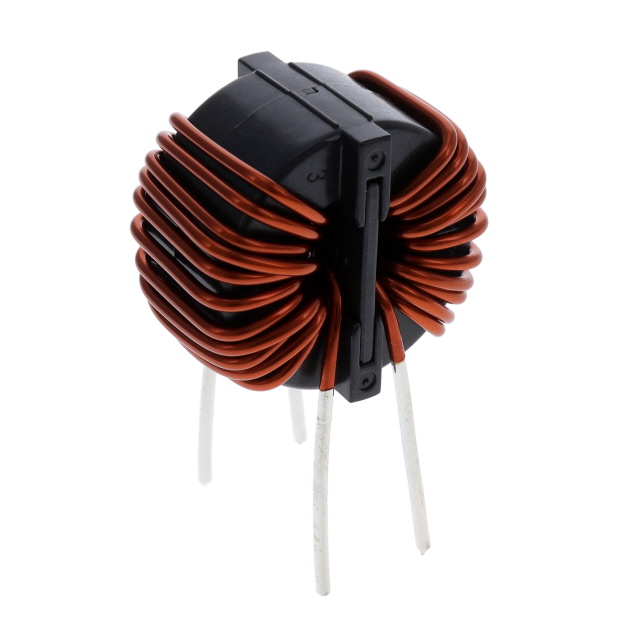

The Chemi-Con LDFL013412VV-V0E is a through-hole common mode choke designed for single-phase applications. It features a nanocrystalline core and offers an inductance of 4.1 mH at 100 kHz, with a rated current capacity of 13 A. The component supports a maximum voltage of 250 VDC and exhibits a DC resistance of 12 mOhm. Its physical dimensions are 30.5 x 34 x 23.5 mm. This filter meets the AEC-Q200 automotive qualification standard.

Common Mode Chokes Feature Summary

• Utilizes a nanocrystalline core material to enhance magnetic performance and filtering efficiency.
• Complies with AEC-Q200 automotive qualification standards for reliability.
• Designed as a two-line common mode choke for effective noise suppression.

Common Mode Chokes Applications

• Automotive power supply line filtering
• Single-phase signal line noise reduction
• Common mode interference suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest documentation to ensure correct specifications. Confirm that the AEC-Q200 qualification status aligns with your project requirements. Check for any recent updates to the datasheet regarding mechanical tolerances or thermal characteristics before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when high current handling capability of 13 A is required alongside significant common mode noise attenuation. The nanocrystalline core provides advantages in saturation characteristics compared to traditional ferrite cores. Ensure the through-hole mounting style fits the target PCB layout constraints.

Common Mode Chokes Part Context

This part belongs to the FL-V series of common mode chokes from Chemi-Con. The series is characterized by its use of nanocrystalline materials, offering superior performance in high-current applications. The LDFL013412VV-V0E represents a specific configuration within this family, tailored for automotive-grade reliability and robust electrical performance.

Common Mode Chokes Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify that any replacement maintains the same inductance, current rating, and form factor. Cross-reference AEC-Q200 compliance if automotive usage is intended.

Common Mode Chokes FAQ

What is the inductance value of the LDFL013412VV-V0E?

The inductance is 4.1 mH measured at 100 kHz.

Is this component qualified for automotive applications?

Yes, it meets the AEC-Q200 automotive qualification standard.
