LM2575HVS-ADJ-EV

Voltage Regulators - DC DC Switching Regulators Overview

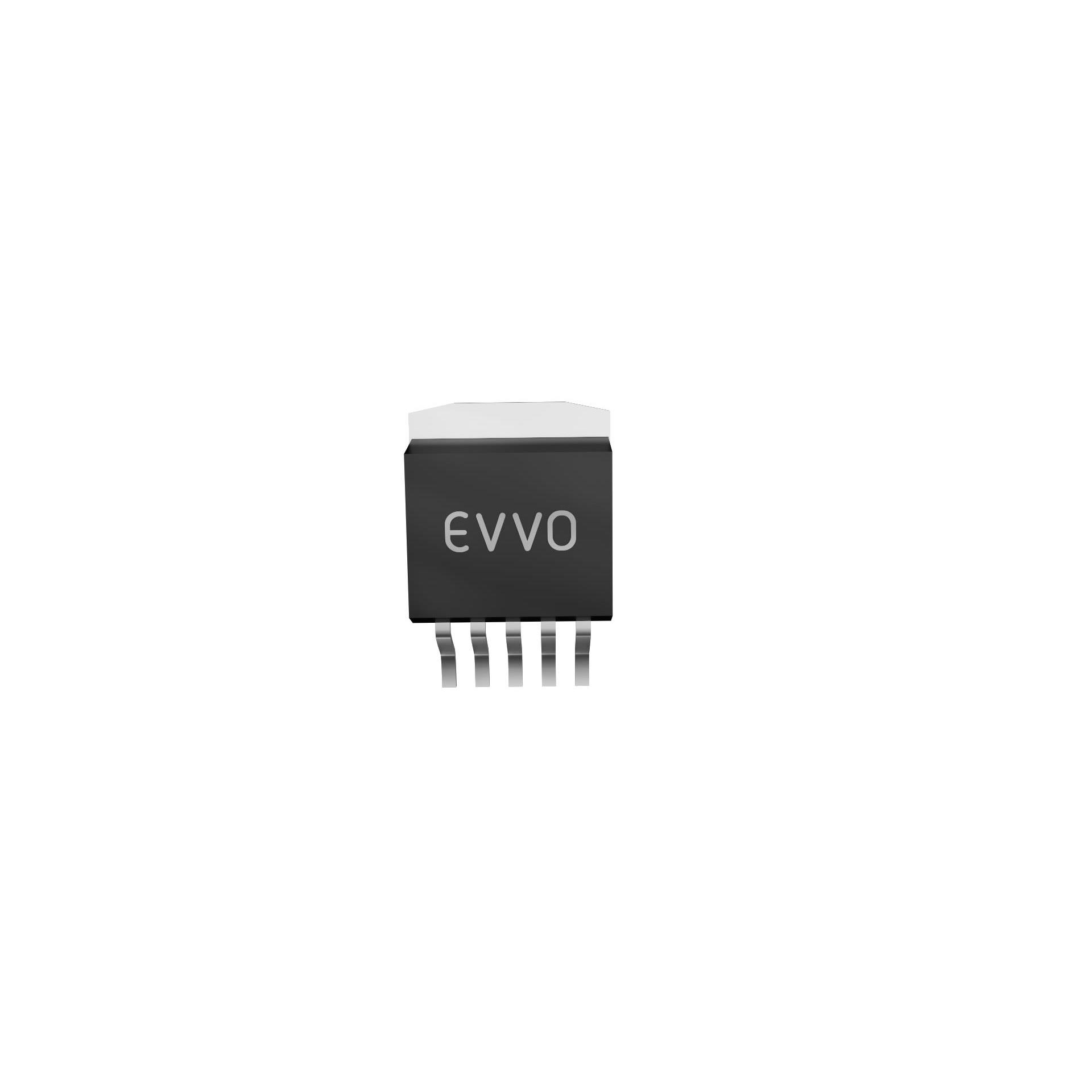

The LM2575HVS-ADJ-EV is a monolithic integrated circuit step-down switching regulator from the EVVO LM2575HV series. It provides an adjustable output voltage ranging from 1.2V to 40V with a maximum output current of 2A. The device operates at a fixed switching frequency of 150kHz and supports input voltages up to 57V. Packaged in a TO-263-5L surface-mount housing, it is designed for high-efficiency DC-DC conversion within a temperature range of -40°C to 125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrated SIMPLE SWITCHER architecture providing complete active functions for step-down regulation
• Adjustable output voltage capability spanning from 1.2V to 40V
• Fixed 150kHz internal oscillator frequency optimized for external component size reduction
• High efficiency operation utilizing internal power transistor

Voltage Regulators - DC DC Switching Regulators Applications

• Distributed power supply systems requiring buck conversion
• Pre-regulator circuits for linear regulators
• Battery-powered equipment step-down applications
• Efficient DC-DC converter designs for industrial electronics

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify that the specific suffix 'EVVO' matches the manufacturer designation on official datasheets. Confirm the package type is TO-263-5L and the output configuration is adjustable. Ensure compliance with RoHS3 standards and check for any specific handling requirements related to the surface-mount topology.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when an adjustable output voltage between 1.2V and 40V is required with up to 2A load capacity. The 150kHz switching frequency allows for smaller passive components compared to lower-frequency alternatives. Consider the 57V maximum input rating for higher voltage bus applications.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LM2575HV series of SIMPLE SWITCHER regulators. It shares architectural similarities with other members like the LM2575HVS-12-EV but differs by offering an adjustable output rather than a fixed voltage. The series is characterized by high efficiency and minimal external component count.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Direct substitutes include the LM2575HVS-ADJ from Texas Instruments or National Semiconductor. Verify pin compatibility and thermal performance when replacing with equivalent parts from other manufacturers.
