LN265RPH

LED Indication - Discrete Overview

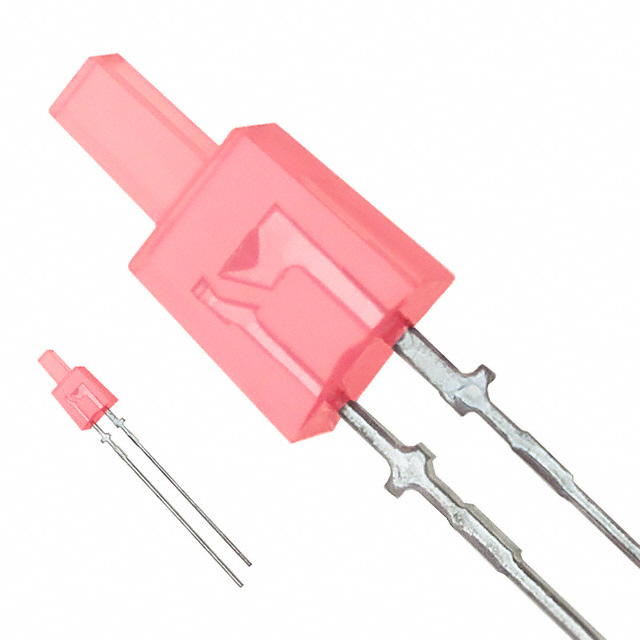

The LN265RPH is a red diffused square type LED indicator from Panasonic Electronic Components, designed for through-hole mounting. It operates with a test current of 20mA and features a maximum height of 16.35mm. This component belongs to the discrete LED indication family, providing visual status signaling in electronic circuits.

LED Indication - Discrete Feature Summary

• Diffused red lens for broad visibility
• Square form factor design
• Through-hole mounting configuration

LED Indication - Discrete Applications

• Panel-mounted status indicators
• Equipment power state signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and mechanical dimensions against your PCB layout requirements. Confirm that the through-hole lead spacing matches your board design before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard red diffused LED is required for panel mounting. Ensure the voltage drop characteristics align with your circuit design constraints and that the square package fits the designated footprint.

LED Indication - Discrete Part Context

This part falls under Panasonic's discrete LED indication series. It serves as a basic visual signaling element within larger electronic assemblies, distinct from integrated display modules or high-power lighting solutions.

LED Indication - Discrete Replacement Considerations

Check pin compatibility and forward voltage specifications when substituting. No direct public substitute part numbers are confirmed for this specific model.
